Lightweight scissor lift

Lightweight scissor lift is refers to the structure is smaller and lighter or the load is small (usually load 1-2) of the working platform, lightweight scissor lift structure is very easy to move to use the site. In accordance with human body engineering, the operation is very simple, also due to the weight is light, so it is done easily by a person operation, initially making a lot of labor and time to complete the work to be done very easily by a person. Generally used for civil or workshop maintenance and cleaning.

Lightweight manual scissor lift

Lightweight scissor lift

Kapasitet: 150-3000KG

Lifting drive/actuation: hydraulic

It's mine. Lifting height: 350 mm

Hydraulic: Hydraulic Footer

Product Type: Mini Scissor Lift Table

The platform of Lightweight Manual Scissor Lift can be customized with slip-resistant, and can also be equipped with fence to prevent some prototype goods from rolling down, and the table can also be added with rollers to facilitate loading and unloading. The lightweight manual scissor lift table and the whole table can be made of stainless steel or aluminum alloy to transport food or corrosive goods.

Lightweight Manual Scissor Lift Specification Parameter List

Tables

Model

BSS10

BSS20

BSS30

BSS50

BSS75

Lifting capacity (kg)

100

200

300

500

750

It's mine. Height (mm)

265

330

330

435

442

Max. Height (mm)

755

910

910

1000

1000

Platform Size (mm)

700*450

830*500

830*500

1010*520

1010*520

Wheel Size (mm)

100

125

125

150

125

Total size (mm)

950*450*1000

1010*500*1000

1010*500*1000

1158*520*1000

1260*520*1000

Net weight (kg)

40

78

80

118

137

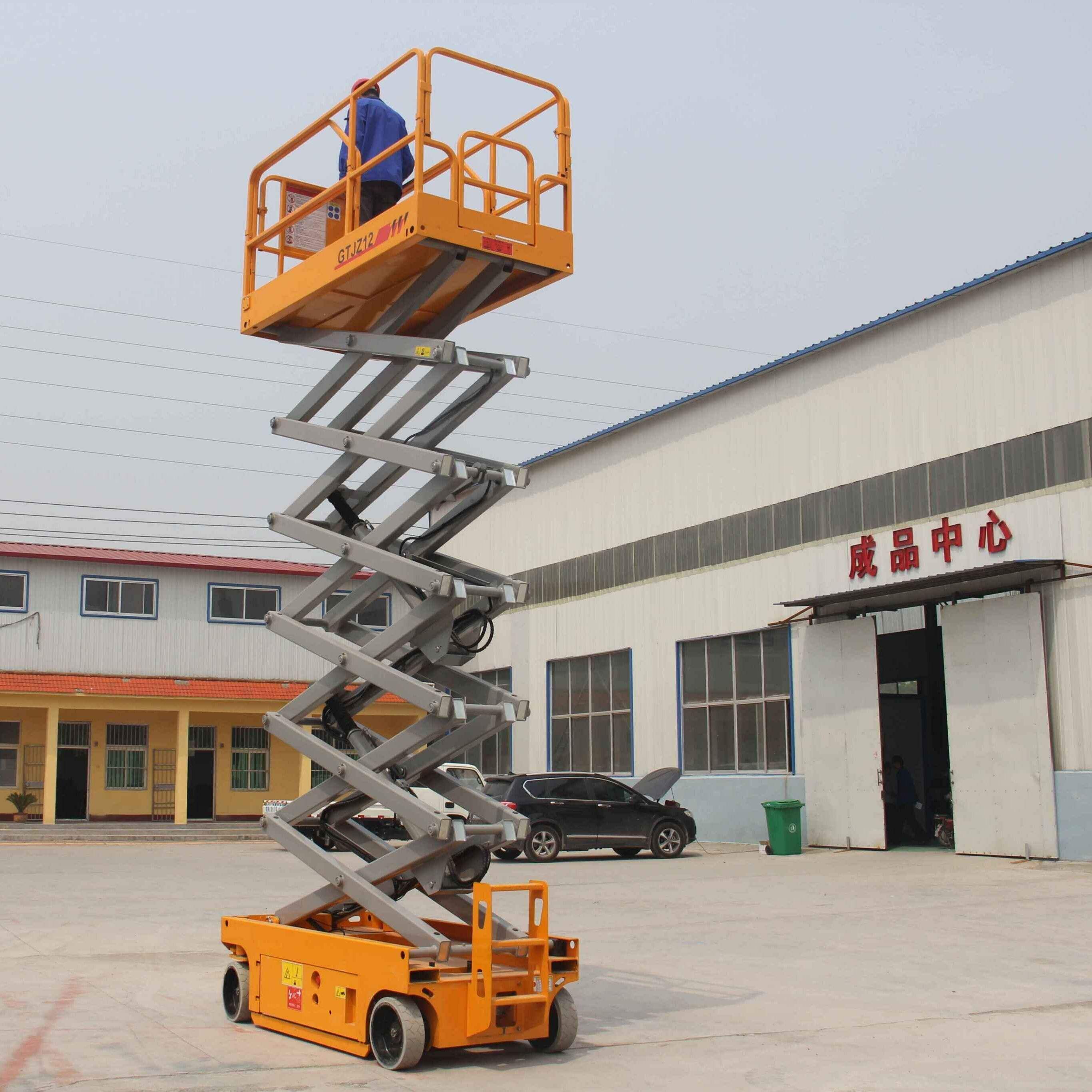

Lightweight Mobile Scissor Lift

Lightweight mobile scissor lift, also known as manshaft lift, is typically used for high-altitude cleaning or lamp maintenance, typically needing to go through narrow passages or doorways. Since most platforms are used to carry people, the board size and payload are relatively small, usually around 200 kg. Usually hydraulically powered by a battery, DFLIFT provides you with the most suitable scissor lift.

Lightweight Mobile Scissor Lift

Rated Load Capacity: 320kg, 480kg

It's mine. Lifting height: 800 mm

Max. Lifting height:16000 mm

Main material: High-grade steel

After-sales Service: Field installation, commissioning and training

Platform: Non-slip checkered plate

Voltage: 110V, 220V, 380V, customized

Lightweight Mobile Scissor Lift Specification Parameter List

Model

SPS0.3-6

SPS0.3-8

SPS0.3-10

SPS0.3-12

Platform height

6m

8m

10m

12m

Working height

8m

10m

12m

14m

Weight limit

300 kg

300 kg

300 kg

300 kg

Dimension

2.48*0.81*1.87

2.48*0.81*1.89

2.48*1.5*1.92

2.48*1.15*2.04

Platform size

2,27 * 0,81m

2,27 * 0,81m

2.27 * 1.12m

2.27 * 1.12m

Extension tires

0,90m

0,90m

0,90m

0,90m

Driving motor

24V / 1,5KW

24V / 1,5KW

24V / 1,5KW

24V / 1,5KW

Lift motor

24V / 3,3KW

24V / 3,3KW

24V / 4,5KW

24V / 4,5KW

Travel speed

4.0 km/h

Wheels

Φ300 * 100mm

Weight

2125kg

2180kg

2965kg

2910kg

Lightweight fixed scissor lift

Lightweight scissor lift Security Features and Benefits

1) Explosion-proof lock valve to avoid a sudden drop if an emergency occurs.
2) The whole scissor lift is passed 1.2 times load test before leaving the factory.
3) The end switch system helps the lifting table to stop in the exact position.
4) The safety rails to guarantee the safety of the people across the platform

Why Choose DFLIFT Lightweight Scissor Lift?

DFLIFT is professional hydraulic lifting platform manufacturer, hydraulic lifting, Board Bridge and other mechanical products. Since the creation of the company, the continuous pursuit of technological progress, committed to product innovation.

Our company has a total of 8 series of more than 60 products, leading products QYCY series scissor lift platform, GTJZ series scissor lift platform.

At the same time, we can also customize the special scissor lifting platform according to customers' needs, to meet customers' needs in various fields. We adhere to the spirit of integrity, professionalism, innovation, to achieve the future of product quality, adhere to research and development, learn from foreign advanced technology and process experience, and improve and improve the level of technology and process continuously to meet different needs of customers.
