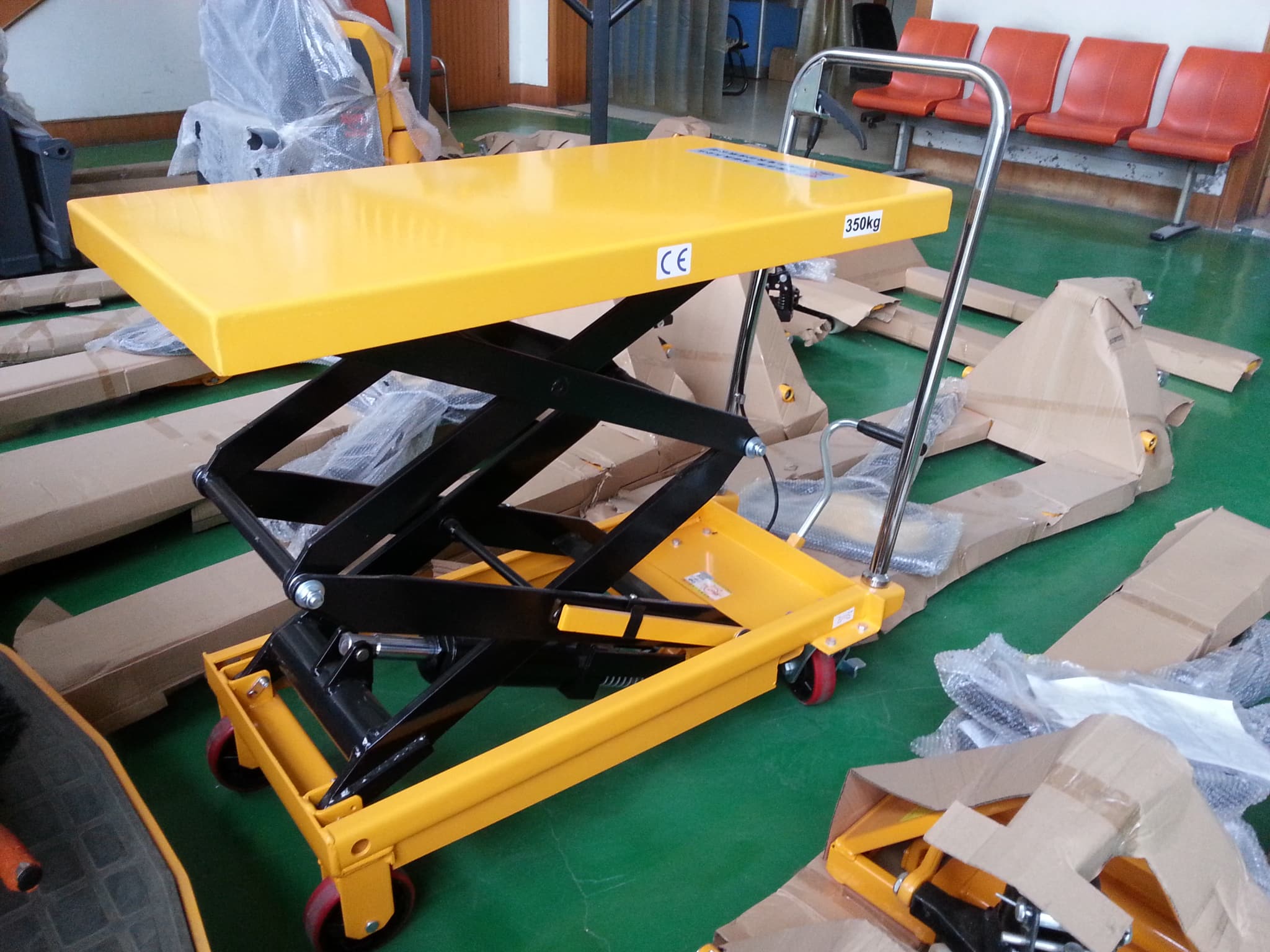

1 meter scissor lift：
1 meter scissor lift means that the lifting stroke of the lifting platform is 1m. The 1m lifting platform can be divided into two kinds of hand push type fixed type. Driving forms are manual hydraulic and electro-hydraulic. It is standard equipment for lifting and transferring goods in the workshop.

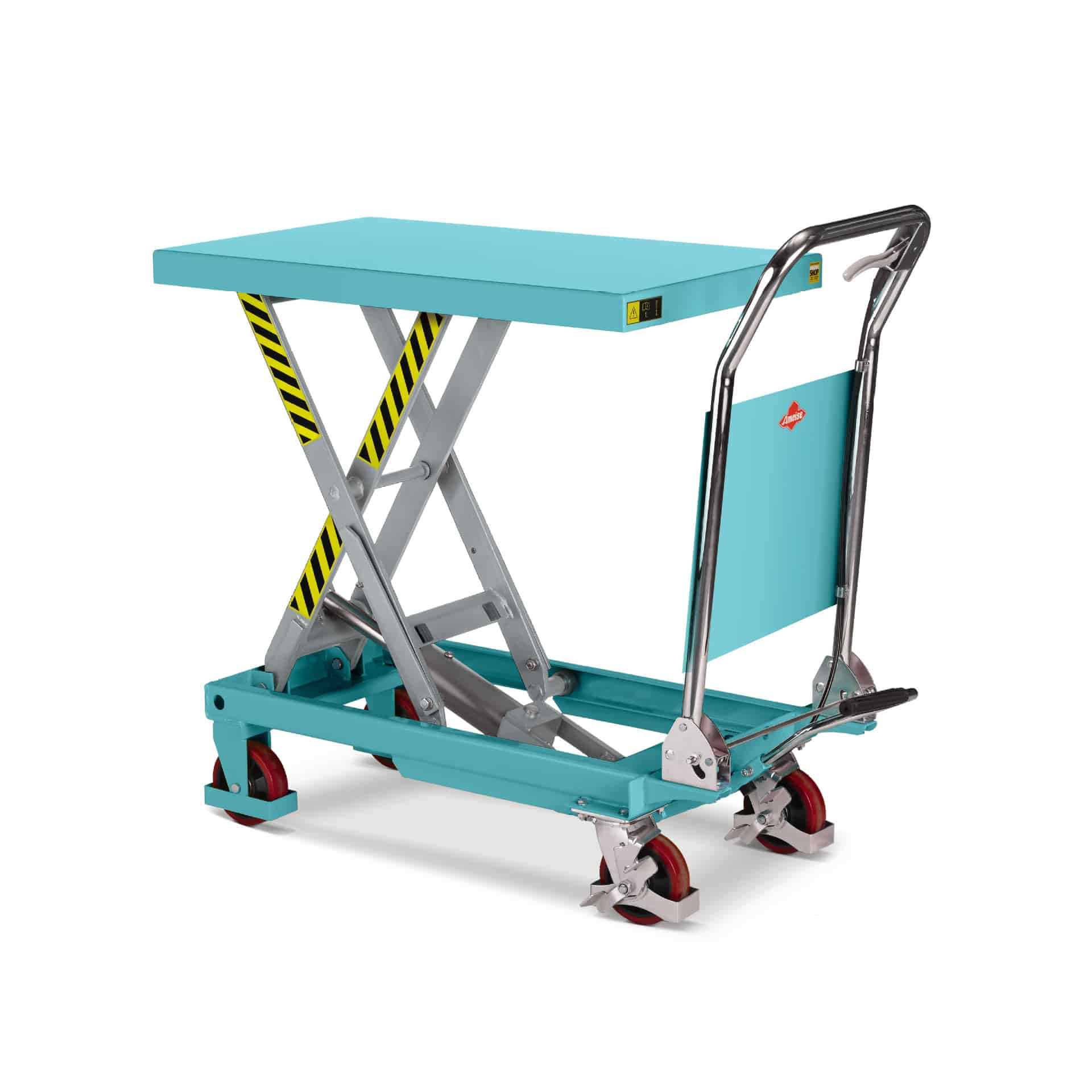

1 meter trollley scissors：
1 meter trolley lift scissors Parameter：
Rated Loading Capacity：100kg-2000kg
Max. Lifting Height：1000mm
Power: Manual Hydraulic or battery
Walking: push/assist walking
Sertipikasyon:
CE, SGS, ISO9001 Lift Table
Color: Yellow or customer specified
1 meter scissor trolley design parameters：
|
Model |
Capacity (kg) |
Table Size (mm) |
Table Height (Min. /Max. mm) |
Wheel Dia. (mm) |
Package size (mm) |
Net Weight (kg) |
|
CPTD500 |
500 |
905*550 |
360/1500 |
125 (5") |
1020*520*360 |
110 |
|
CPTD800 |
800 |
1200*610 |
450/1500 |
125 (5") |
1380*610*460 |
150 |
|
CPTD1000 |
1000 |
1200*610 |
500/1700 |
150 (6") |
1370*610*500 |
225 |
|
CPTD1500 |
1500 |
1200*610 |
500/1700 |
150 (6") |
1370*610*500 |
225 |
1 meter raised scissor cutter:
1 meter stationary scissor lift shears:
Rated Loading Capacity: 500kg-40ton
Max. Lifting Height: 1000mm
Type: Electric Hydraulic
Power supply: three-phase alternating current
Table size: customer specified
1 meter scissor manufacturer：
Henan DFLIFT machinery co., LTD is a professional scissor lift supplier in China. We have CE, ISO certification, 1-year warranty for all our products, 24-hour online service, and lifetime technical guidance for equipment.
