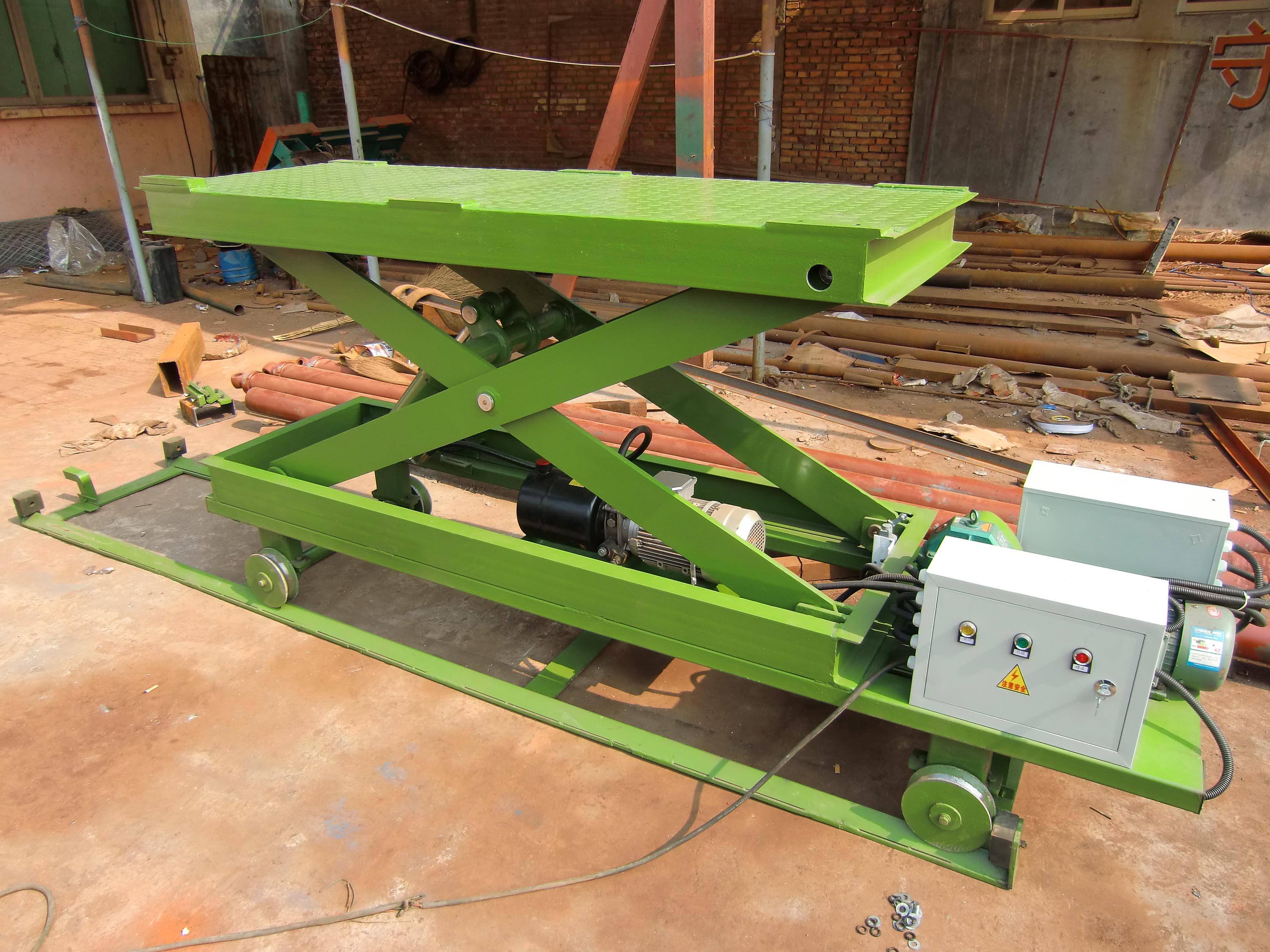

Scissor workbench lift is a kind of cargo lifting equipment with good lifting stability and wide application range. Material on-line and off-line; Adjust the height of the work piece during assembly. High feeder feeding; Lifting components during the assembly of large equipment; Large machine tool feeding and unloading; The storage and handling of premises and forklift and other vehicles supporting rapid loading and unloading of goods. According to the requirements of use, Scissor lift workbench can be configured with accessories for any combination, such as stationary Scissor safety protection device, electric control mode, work platform form, power form, etc. Choose the right configuration to maximize the use of the scissor lift workbench. Stationary lifting platform optional hydraulic power adjustment, convenience and the surrounding lap of the joint frame, roller rolling or motor, prevent pinch safe handle, organ type security guards, motion or motor rotating table, hydraulic shovel, prevent Scissor lift workbench collapse safety support bar, Stainless Steel retainer, electric or hydraulic lifting workbench power walking system, universal ball table.
Rated Loading Capacity: 500kg-40ton
Max. Lifting Height: 6m
Type: Hydraulic
Power supply: three-phase alternating current
Table size: customer specified
Scissor workbench lift parameter table:
Desks
|
Model |
Kapasiteit |
Elevated height |
Weight |
Platform size |
|
SJG 1-3 |
1000kg |
3000mm |
1600 |
1600x1200mm |
|
SJG 1-6.3 |
1000kg |
6300mm |
3280 |
3000x2385mm |
|
SJG 1-7.9 |
1000kg |
7900mm |
3100 |
2000x1800mm |
|
SJG 2-5 |
2000kg |
5000mm |
3000 |
4500x2160mm |
|
SJG3-6.4 |
3000kg |
6400mm |
8500 |
7000x4000mm |
Please don't get trapped in the above listed models, because our products can be customized, please tell us the lifting height, load capacity and platform size you need.
Why choose DFLIFT Scissor lift？
1. How about the quality of your Scissor lift workbench?
Our factory has 20 years of machining experience. All of our machines have passed ISO9001, SGS and CE certification. Exported to many countries and regions; well received by customers.
2. What is your fixed price for Scissor lift workbench?
We insist on quality first, based on quality, we will get the reasonable and cheapest price!
3. Can you send me the video of Scissor lift workbench?
Of course, we will be happy to send you a video.
