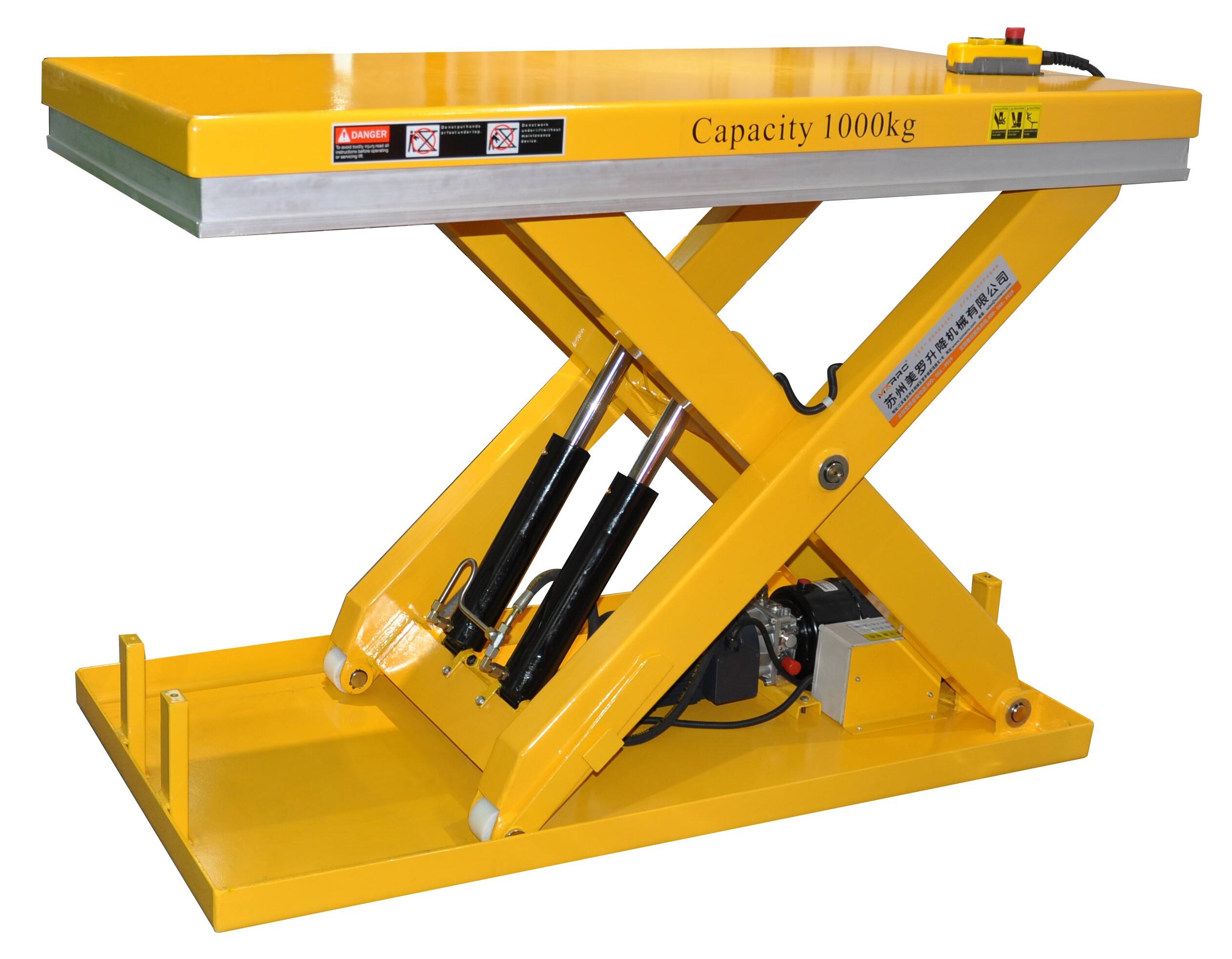

Cargo scissor lift is the most suitable equipment for vertical Cargo transport in a workshop or warehouse. It is mainly suitable for multi-storey workshops and Cargo loading and unloading. Cargo scissor lift has a wide range of lifting weight and can be customized according to customers' requirements. It can be installed in the foundation pit, and the platform and ground level are flat. Cargo scissor lift can be easily transferred to Cargo scissor lift. With 20 years of scissor making experience in China, DFLIFT is the earliest scissor scissor manufacturer and supplier in China. We have a professional team and the most reasonable price. Welcome to visit us.
Specification of cargo scissor lift:
Rated Loading Capacity: 500kg-40ton
Max. Lifting Height: 6m
Type: Hydraulic
Power supply: Three-phase electric power
Table size: customer specified
Specifications of best lifting scissor hydraulic cargo scissors:
Desks
|
Model |
Table size (mm) |
Loading capacity (T) |
Platform height (m) |
Size (L*W*H) (mm) |
|
FSL1—1.2 |
2800 × 2500 |
1 |
1.2 |
2800 × 2500 × 250 |
|
FSL3—2 |
3000 × 2600 |
3 |
2 |
3000 × 2600 × 450 |
|
FSL1.5—10 |
4000 × 3000 |
1.5 |
10 |
3000 × 3000 × 1600 |
|
FSL2—7 |
3000 × 2500 |
2 |
7 |
3000 × 2500 × 880 |
|
FSL2.2—1.8 |
3800 × 2500 |
2.2 |
1.8 |
3800 × 2500 × 280 |
|
FSL5—2.5 |
4000 × 3200 |
5 |
2.5 |
4000 × 3200 × 650 |
|
FSL6—6.6 |
4500 × 3000 |
6 |
6.6 |
4500 × 3000 × 900 |
|
FSL4.5—3.2 |
5000 × 2400 |
4.5 |
3.2 |
5000 × 2400 × 700 |
|
FSL20—4.5 |
6500 × 5500 |
20 |
4.5 |
6500 * 5500 × 1500 |
|
FSL15—5 |
6000 × 4500 |
15 |
5 |
6000 × 4500 × 1200 |
|
FSL7—6 |
6000 × 2800 |
7 |
6 |
6000 × 2800 × 850 |
|
FSL8—7.5 |
6000 × 3000 |
8 |
7.5 |
6000 × 3000 × 1200 |
|
FSL3.5—9 |
6500 × 3500 |
3.5 |
9 |
6500 × 3500 × 900 |
|
FSL2.5—12 |
8000 × 3000 |
2.5 |
12 |
8000 × 3000 × 850 |

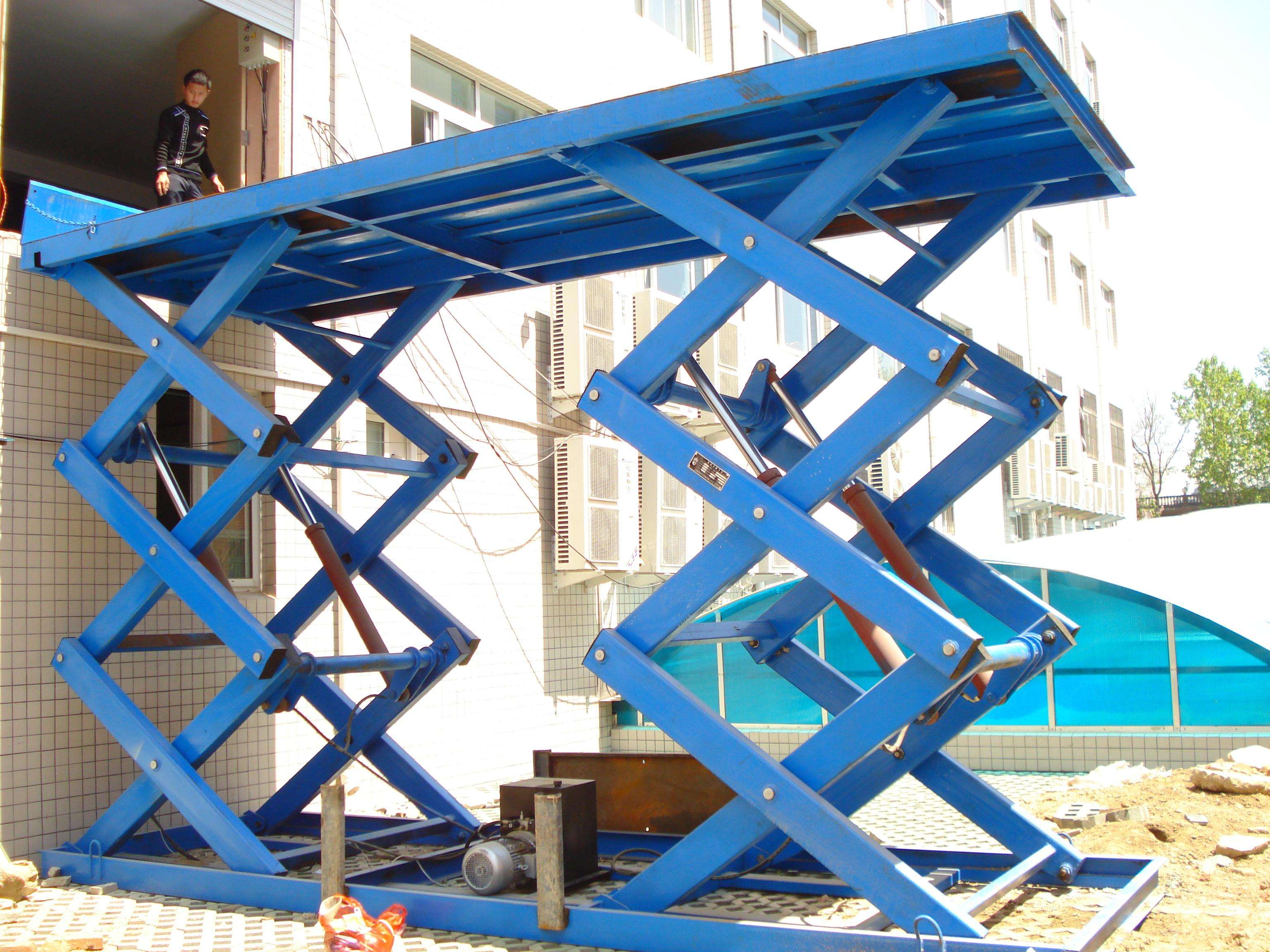

Double cargo scissor lift:
Freight double scissor lift Specifications:
Rated Loading Capacity: 500kg-40ton
Max. Lifting Height: 6m
Type: Hydraulic
Power supply: three-phase alternating current
Table size: customer specified
DFLIFT Safety device best scissor lift hydraulic load scissor lift
1. Sensitive overload protection device and locking device for falling
2. Anti-explosion valve: prevent the hydro oil pipe from cracking.
3. Overflow valve: it will prevent excessive pressure when the machine rises.
4. Emergency rejection valve: it can let the machine collapse when the power is off.
5. Safety bar: this will prevent the platform from hitting goods or people when it falls.
