Electric Scissor Lift

In general, the electric scissor lift can be divided into the mobile electric scissor lift and the electric scissor lift, which play an important role in daily life and industrial production. DFLIFT is an enterprise dedicated to the manufacture and manufacture of scissor lift. Our lifting platform has low price and high quality.

Mobile electric scissor lift for sale:

Mobile electric scissor lift 1

Parameters of mobile electric scissor lift:

Rated load: 300kg 500kg 1000kg 2000kg

Raised height: 3m 6m 8m 10m 12m 14m 16m 18m 20m

Walking mode: hand pulling or helping to walk

Power supply: ac, battery, diesel, manual

Type: Electric Hydraulic

Pull-type electric scissor lift Is the most widely used, it is low cost, can adapt to different working environments, lifting weight, lifting height is high, can use three-phase electricity can also use a battery, pumping leg to ensure the stability of the platform when working.

Electric scissor lift trolley manufacturer:

The electric scissor lift trolley

Kapasidad: 150-3000KG

Lift Drive/Actuation: Hydraulic

Min. Lifting Height: 350mm

Hydraulic: de-electric hydraulic

Product Type: Electric scissor lift table

The Electric scissor lift table is made of high-strength steel. Reasonable, safe, stable and reliable design structure. Built-in safety valve, full sealed oil cylinder, manual lifting control hydraulic system, easy and simple operation. The lifting table of the electric scissor is equipped with a nylon guide wheel to save the physical strength of the operator and protect the load wheel and the pallet load wheel. Unique hydraulic pump design, easy to pump to maintain a desired height for line loading and unloading operations; with unique ergonomic design for operator convenience.

Electric automatic scissor lift:

Electric automatic scissor lift 1

Elektrik automatic scissor lift parameter:

Rated Loading Capacity: 320kg 480kg

Min. Lifting Height: 800mm

Max. Lifting Height:16000mm

Main Material: High duty steel

After-sales Service Provided: Field installation, commissioning and training

Platform: Anti-skid Checkered Plate

Boltahe: 110V, 220V, 380V, na-customize

Electric scissor lift for sales:

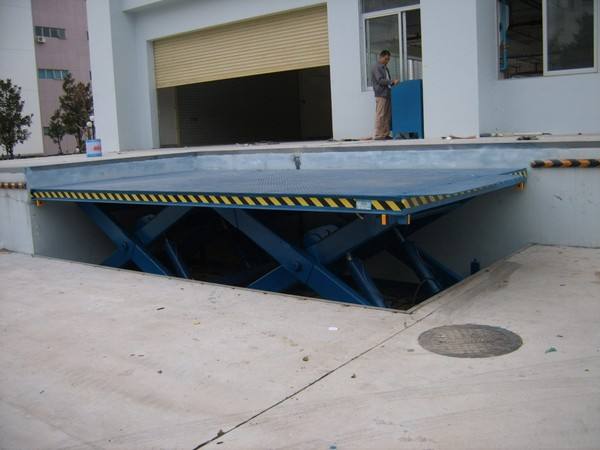

Electric stationary scissor lift 1

Parameter of electric scissor lift:

Rated Loading Capacity: 500kg-100ton

Max. Lifting Height: 6m

Type: Electric Hydraulic

Power supply: three-phase alternating current

Table size: customer specified

Description of electric scissor lift:

Building requirements: the foundation pit is provided with a waterproof layer, the dimensional error is less than 10mm, the foundation thickness is more than 200mm, and C20 C30 concrete is adopted.
Power distribution: Configure the corresponding distribution box according to the motor power of the lifting platform. The standard power supply for the lifting platform is a three-phase four-wire AC 380V power supply.
Pre-embedded pipe: 2 pipes are laid from the foundation pit of the hydraulic station (can enter any direction of the foundation pit), and the radius of the pipe corner “R” is greater than 40mm.
Hydraulic station: The position of the hydraulic station is determined by the owner according to the closest and convenient operation principle.

The electricity lifting scissor mainly used for transporting goods between high floors of buildings. The products are mainly transported up and down between different working layers; the car lifts into three-dimensional garages and underground garages. The electric scissor lift is equipped with anti-drop and overload protection devices. Operation buttons can be set on each floor and work surface to achieve multi-point control. Electric stationary scissor lift has solid structure, large carrying capacity, stable lifting, easy installation and maintenance, and an ideal payload for economical and practical replacement of elevators between low floors. According to the installation and use requirements of the lifting platform, various optional configurations can be selected for better use.

WHY CHOOSE DFLIFT ELECTRIC SCISSOR LIFT?

Electric scissor lift Optional:
Optional explosion-proof electrical for explosion-proof applications
Optional guide rails and guide wheels for a more stable lifting platform
Optional external hydraulic power unit for easy maintenance
Optional steel chain, gear lever, sliding door, etc.
Multi-point control available on request
Optional jogging or self-insured operation according to requirements
Optional elevator running warning light or warning bell
Configured exterior door open lock lift safety safety
