Scollor lift trolley is small lifting machinery, mainly used for small lifting range, article taking and placing, also used for transporting small valuables. The appearance of the product is generous and beautiful, the structure is stable, stable and safe and reliable, the intrinsic performance and the service life have reached the same advanced level of equipment. At present, the main market market is hydraulic driven hoist, because of the small size, the table scissor lift is easy to move widely used in logistics transportation, warehouse management, library, supermarket, and ordinary small production equipment.

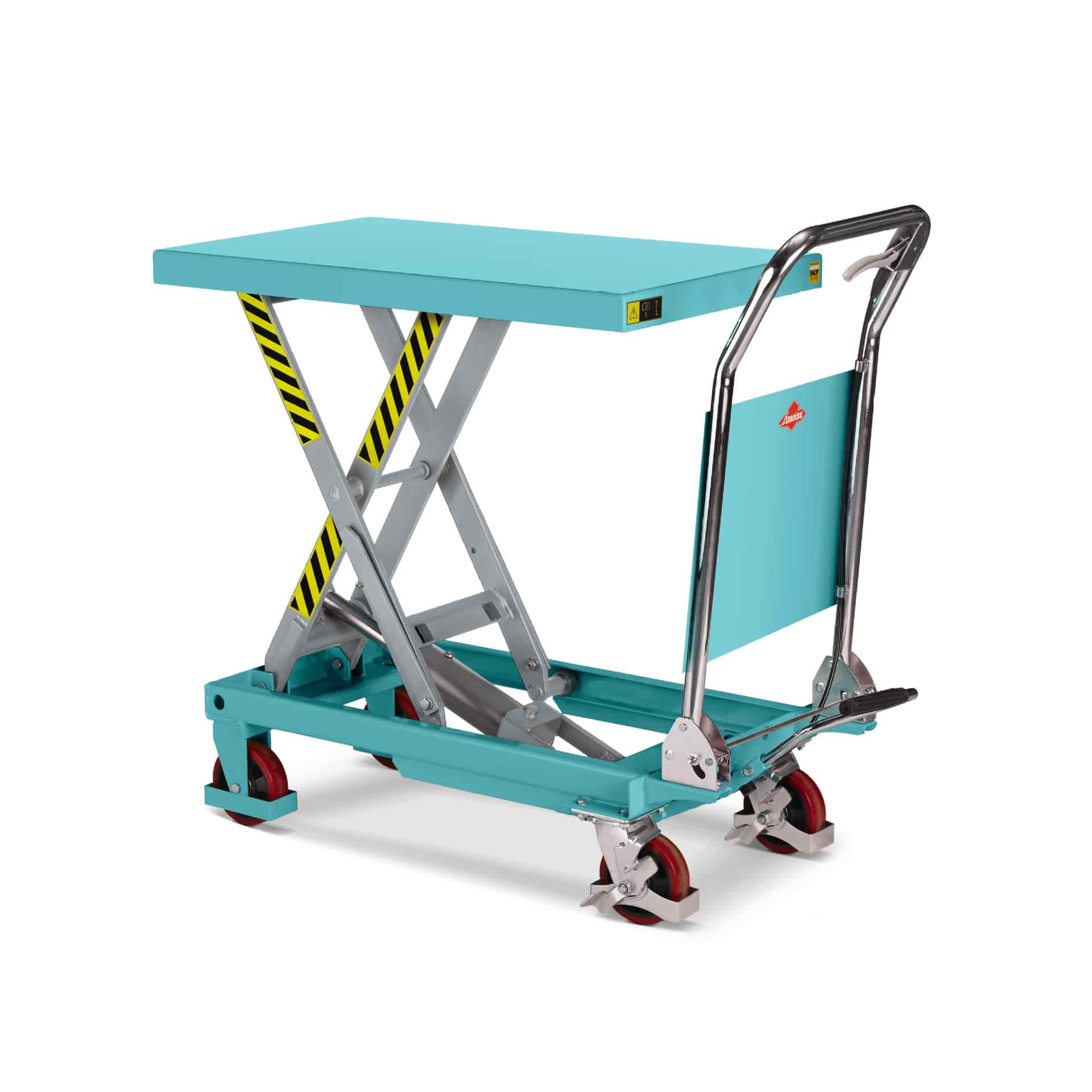

Manual scissor lift trolley Parameter
Kapasidad:
150-3000KG
Lift Drive/Actuation: Hydraulic
Min. Lifting Height: 350mm
Hydraulic: hydraulic foot type
Product Type: Mini scissor lift table
Specification of scissor lift trolley
Desks
|
Model |
HW-150 |
HW-300 |
HW-500 |
HW-750 |
HW-300D |
|
Name |
Hydraulic Scissor Lift Table |
Double hydraulic Scissor lift table |
|||
|
Carrying load (kg) |
150 |
300 |
500 |
750 |
300 |
|
Overall dimensions (mm) |
900*450*900 |
1050*520*900 |
1120*520*900 |
1120*520*900 |
1050*520*900 |
|
Platform size (mm) |
708*450 |
820*520 |
820*520 |
820*520 |
820*520 |
|
Min height (mm) |
225 |
240 |
260 |
280 |
360 |
|
Max height (mm) |
700 |
750 |
780 |
780 |
1220 |
|
Wheel size (mm) |
Φ100 * w30 |
||||
|
Package size (mm) |
810*490*250 |
920*590*250 |
920*560*300 |
920*590*300 |
920*570*380 |
|
Weight (kg) |
49 |
66 |
75 |
75 |
103 |
Electric scissor lift trolley：
Electric scissor lift trolley compared with manual scissor lift table added battery module, which can continuously work for 10 hours when fully charged. Its lifting is driven by battery hydraulic pump, and it saves time and energy compared with hydraulic pump walking. If the heavy load is not convenient for manual pushing, you can also add an auxiliary walking device to make the task more relaxed. DFLIFT always serves you.
Rated Loading Capacity：150kg-2000kg
Max. Lifting Height：700-2000mm
Lifting mechanism: Electric motor
Lift Drive/Actuation: Hydraulic
Defining Scissor Lift Table Trolley
|
Model |
DP30 |
DP50 |
DP35 |
|
Loading capacity (kg) |
300 |
500 |
350 |
|
Min. lifting height (mm) |
280 |
280 |
280 |
|
Max. lifting height (mm) |
900 |
900 |
1300 |
|
Table size (mm) |
950*500*50 |
950*500*50 |
950*500*50 |
|
Wheel size (mm) |
125 |
125 |
125 |
|
Voltage (V) |
12 |
12 |
12 |
|
Power (kw) |
800 |
800 |
800 |
|
Battery (ah) |
65 |
65 |
65 |
|
Input voltage (V) |
220/110 |
220/110 |
220/110 |
|
Net weight (kg) |
110 |
140 |
120 |
Roller table scissor lift trolley
The parameter of trolley lifting roller table scissor
Kapasidad: 150-3000KG
Lift Drive/Actuation: Hydraulic
MAX. Lifting Height: 700-2000mm
Hydraulic: hydraulic foot type
Product Type: Mini scissor lift table
Stainless steel/aluminum alloy scissor trolley
Stainless Steel/aluminum alloy scissors lifting trolley Parameter
Kapasidad: 150-1000KG
Lift Drive/Actuation: Hydraulic
Max. Lifting Height: 700-2000mm
Hydraulic: hydraulic foot type
Product Type: Mini scissor lift table
- The products of scissor lift table trolley are made of aluminum alloy or stainless steel;
- The stainless steel/aluminum alloy raised scissor trolley in the overall appearance of the product is beautiful and lightweight.
Why choose DFLIFT Scissor lift?
Rich experience: We have more than 20 years experience in hydraulic scissor lift. That means, we can preview problems for orders and products. Therefore, this will ensure to reduce the risk of adverse events occurring.
Point to point service: There is a sales representative who will serve you from inquiry to products shipped. During the process, you just need to discuss with him for all the problems and the method saves a lot of time.
Strict QC: For each trollley order of scissor lift, strict inspection will be carried out by QC department before shipment. Bad quality will be avoided inside the door.
