Lightweight scissor lift refers to the structure is smaller and lighter or the load is small (usually load 1-2) of the aerial work platform, the lightweight scissor lift structure is very easy to move to use the site. Corresponding to the engineering of the human body, the operation is very simple, because also its weight is light, so it is easily done by a human operation, make it original requires a lot of manpower and time to complete the work that is easy to do by one person Generally used for civil maintenance or workshop and cleaning.

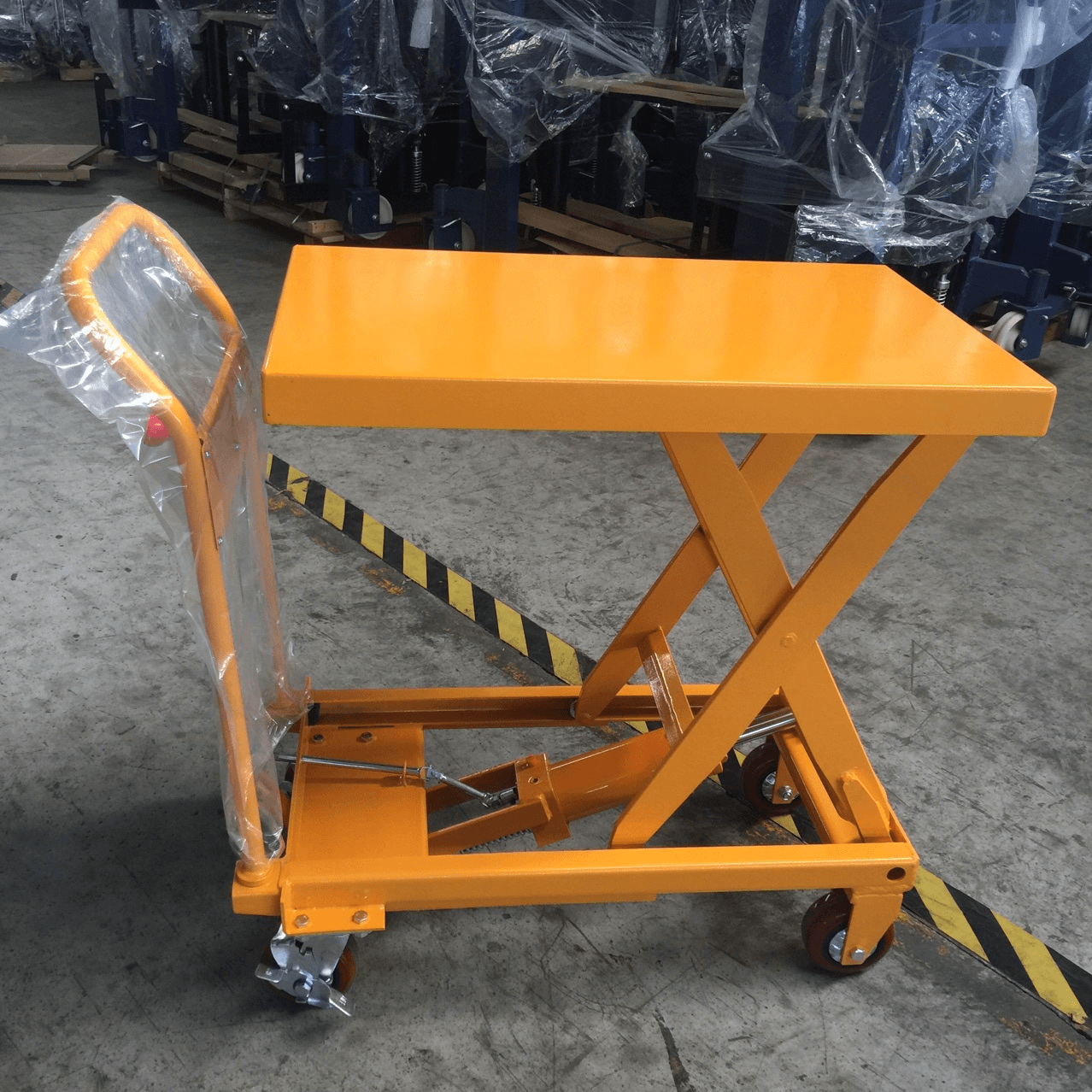

Lightweight manual scissor lift
Kapasidad: 150-3000KG
Lift Drive/Actuation: Hydraulic
Min. Lifting Height: 350mm
Hydraulic: hydraulic foot type
Product Type: Mini scissor lift table
The platform of Lightweight manual scissor lift can be customized with no proof proof, and can also be equipped with fence to prevent some prototype goods from rotating, and the table can also be added with rollers to facilitate loading and unloading. The lightweight manual scissor lift table and the whole table can be made of stainless steel or aluminum alloy to carry some food or corrosive goods.
Lightweight precision scissor specification parameter list
Desks
|
Model |
BSS10 |
BSS20 |
BSS30 |
BSS50 |
BSS75 |
|
Lifting Capacity (kg) |
100 |
200 |
300 |
500 |
750 |
|
Min. Height (mm) |
265 |
330 |
330 |
435 |
442 |
|
Max. Height (mm) |
755 |
910 |
910 |
1000 |
1000 |
|
Platform Size (mm) |
700*450 |
830*500 |
830*500 |
1010*520 |
1010*520 |
|
Wheel Size (mm) |
100 |
125 |
125 |
150 |
125 |
|
Overall Size (mm) |
950*450*1000 |
1010*500*1000 |
1010*500*1000 |
1158*520*1000 |
1260*520*1000 |
|
Net Weight (kg) |
40 |
78 |
80 |
118 |
137 |
Lightweight mobile scissor lift
Lightweight mobile scissor lift, also known as man scissor lift, is commonly used for high-altitude cleaning or lamp maintenance, which usually needs to pass through narrow passages or doorways. Like most platforms used to transport people, the size of table and cargo is relatively small, usually about 200kg. Usually hydraulically driven by a battery, DFLIFT gives you the most suitable scissor lift.
Rated Loading Capacity: 320kg 480kg
Min. Lifting Height: 800mm
Max. Lifting Height：16000mm
Main Material: High duty steel
After-sales Service Provided: Field installation, commissioning and training
Platform: Anti-skid Checkered Plate
Boltahe: 110V, 220V, 380V, na-customize
Lightweight mobile scissor specification parameter list
|
Model |
SPS0.3-6 |
SPS0.3-8 |
SPS0.3-10 |
SPS0.3-12 |
|
Platform height |
6m |
8m |
10m |
12m |
|
Height of work |
8m |
10m |
12m |
14m |
|
Load capacity |
300kg |
300kg |
300kg |
300kg |
|
Dimension |
2.48*0.81*1.87 |
2.48*0.81*1.89 |
2.48*1.5*1.92 |
2.48*1.15*2.04 |
|
Platform size |
2.27 * 0.81m |
2.27 * 0.81m |
2.27 * 1.12m |
2.27 * 1.12m |
|
Expansion deck |
0.90m |
0.90m |
0.90m |
0.90m |
|
Driving Motor |
24V / 1.5KW |
24V / 1.5KW |
24V / 1.5KW |
24V / 1.5KW |
|
Raise the motor |
24V / 3.3KW |
24V / 3.3KW |
24V / 4.5KW |
24V / 4.5KW |
|
Travel speed |
4.0km / h |
|||
|
Tires |
Φ300 * 100mm |
|||
|
Weight |
2125kg |
2180kg |
2965kg |
2910kg |
Lightweight fixed scissor lift
Lightweight scissor lift Safety features and advantages
1) Lock-proof lock valve to prevent a sudden collapse if emergency occurs.
2) All the following scissor lifts have passed 1.2 times load test before leaving the factory.
3) Limit switch system helps lift table to stop at precise position.
4) Safety rails to guarantee the safety of people above the platform
Why choose DFLIFT Lightweight scissor lift?
DFLIFT is a professional hydraulic lifting platform manufacturer, hydraulic lift, Board Bridge and other series of mechanical products. Since the establishment of the company, the constant pursuit of technological development, focused on product innovation.
Our company has a total of 8 series of more than 60 products, top products QYCY series scissor platform lifting, GTJZ series automatic scissor platform lifting.
At the same time, we can also customize the special scissor lifting platform according to the needs of customers, to meet the needs of customers in different fields. We adhere to the spirit of integrity, professionalism, innovation, to achieve the future of product quality, adhere to research and development, learn from foreign advanced technology and process experience, and continuously improve and improve the level of technology and process, to meet the various needs of customers.
