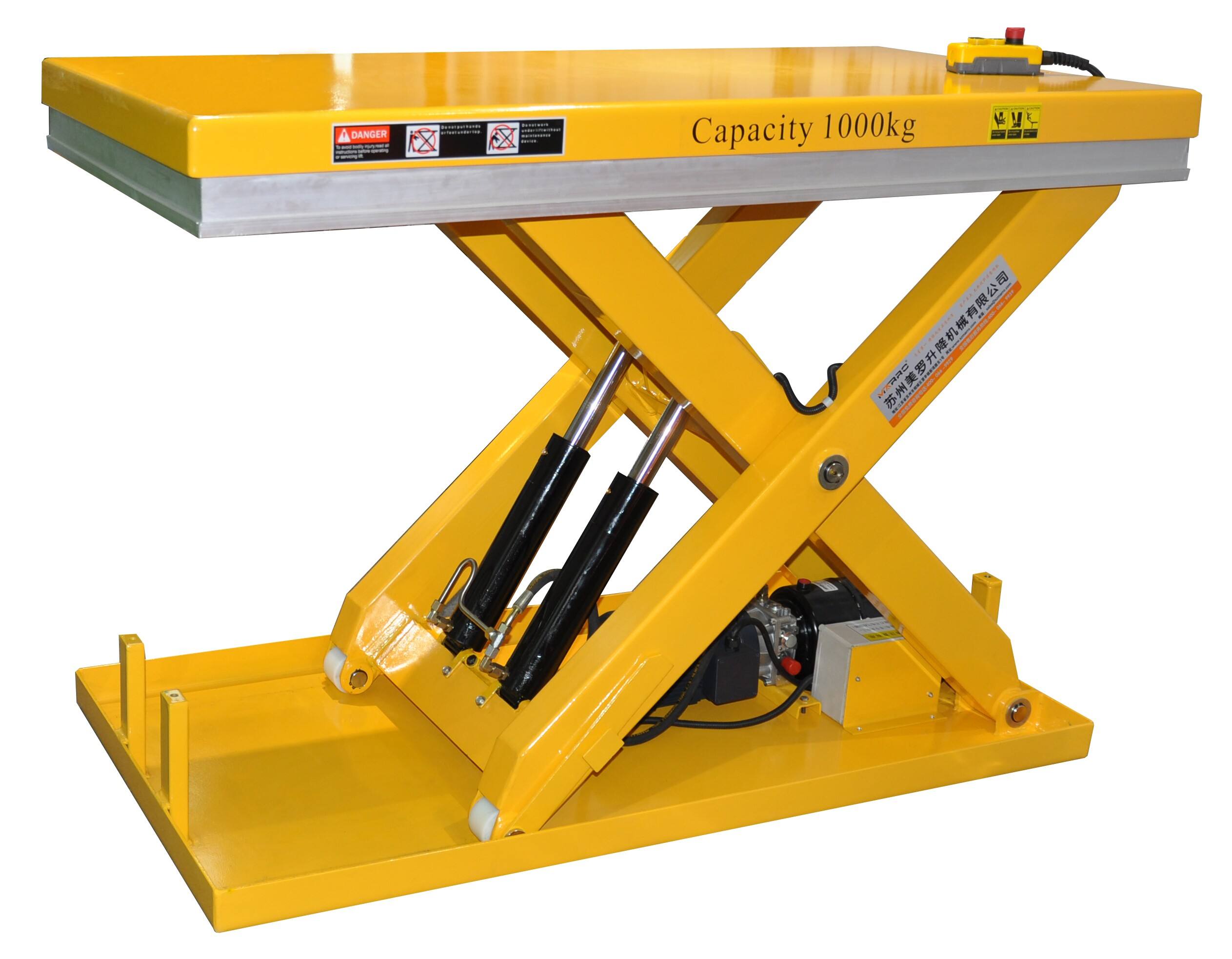

Cargo scissor lift is the most suitable equipment for vertical Cargo transport in a workshop or warehouse. It is mainly suitable for multi-storey workshops and Cargo loading and unloading. Cargo scissor lift has a wide lifting weight range and can be customized according to customers' requirements. It can be installed in the foundation pit, and the platform and ground level are flat. Cargo scissor lift can be easily moved to the Cargo scissor lift. With 20 years of experience in scissor lift production in China, DFLIFT is the earliest scissor lift manufacturer and supplier in China. We have a professional team and the most reasonable price. Welcome to visit us.
Cargo scissor lift specification:
Rated Loading Capacity: 500kg-40ton
Max. Lifting Height: 6m
Type: Hydraulic
Power supply: Three-phase electric power
Table size: specified by customer
Specifications of best scissor lift hydraulic scissor cargo lift:
Tables
|
Model |
Table size(mm) |
Loading capacity(T) |
Platform height(m) |
Size (L*W*H) (mm) |
|
FSL1—1.2 |
2800×2500 |
1 |
1.2 |
2800×2500×250 |
|
FSL3—2 |
3000×2600 |
3 |
2 |
3000×2600×450 |
|
FSL1.5—10 |
4000×3000 |
1.5 |
10 |
3000×3000×1600 |
|
FSL2—7 |
3000×2500 |
2 |
7 |
3000×2500×880 |
|
FSL2.2—1.8 |
3800×2500 |
2.2 |
1.8 |
3800×2500×280 |
|
FSL5—2.5 |
4000×3200 |
5 |
2.5 |
4000×3200×650 |
|
FSL6—6.6 |
4500×3000 |
6 |
6.6 |
4500×3000×900 |
|
FSL4.5—3.2 |
5000×2400 |
4.5 |
3.2 |
5000×2400×700 |
|
FSL20—4.5 |
6500×5500 |
20 |
4.5 |
6500*5500×1500 |
|
FSL15—5 |
6000×4500 |
15 |
5 |
6000×4500×1200 |
|
FSL7—6 |
6000×2800 |
7 |
6 |
6000×2800×850 |
|
FSL8—7.5 |
6000×3000 |
8 |
7.5 |
6000×3000×1200 |
|
FSL3.5—9 |
6500×3500 |
3.5 |
9 |
6500×3500×900 |
|
FSL2.5—12 |
8000×3000 |
2.5 |
12 |
8000×3000×850 |

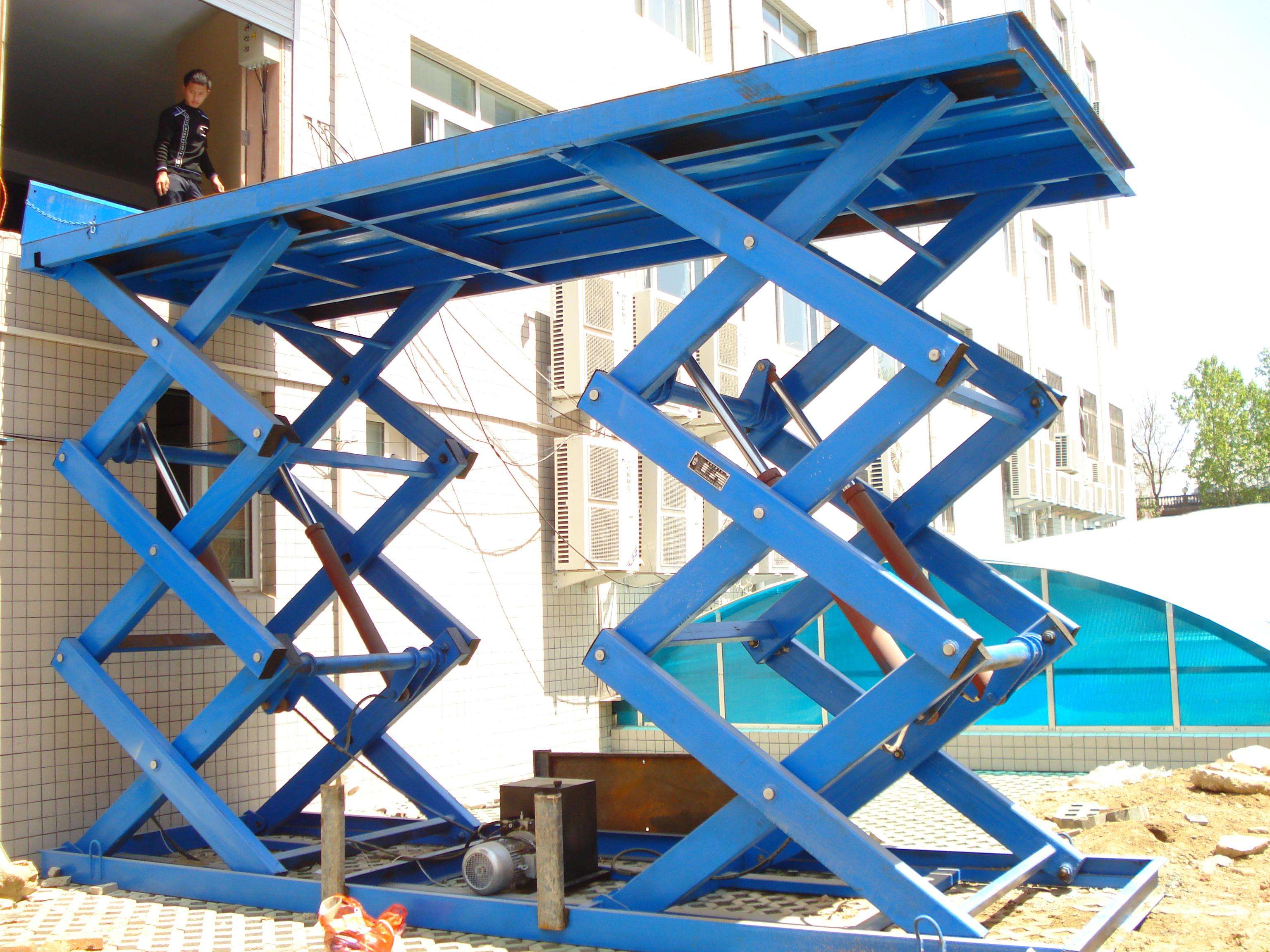

Cargo double scissor lift:
Cargo double scissor lift specifications:
Rated Loading Capacity: 500kg-40ton
Max. Lifting Height: 6m
Type: Hydraulic
Power supply: three-phase alternating current
Table size: specified by customer
DFLIFT Safety device of best scissor lift hydraulic cargo scissor lift
1. Sensitive overload protection device and locking device for falling down
2. Anti-explosion valve: prevent the hydro oil pipe from cracking.
3. Overflow valve: it will prevent the pressure too high when the machine rises up.
4. Emergency decline valve: it can let the machine falls down when power is off.
5. Safety bar: it will prevent the platform struck the goods or person when it falls down.
