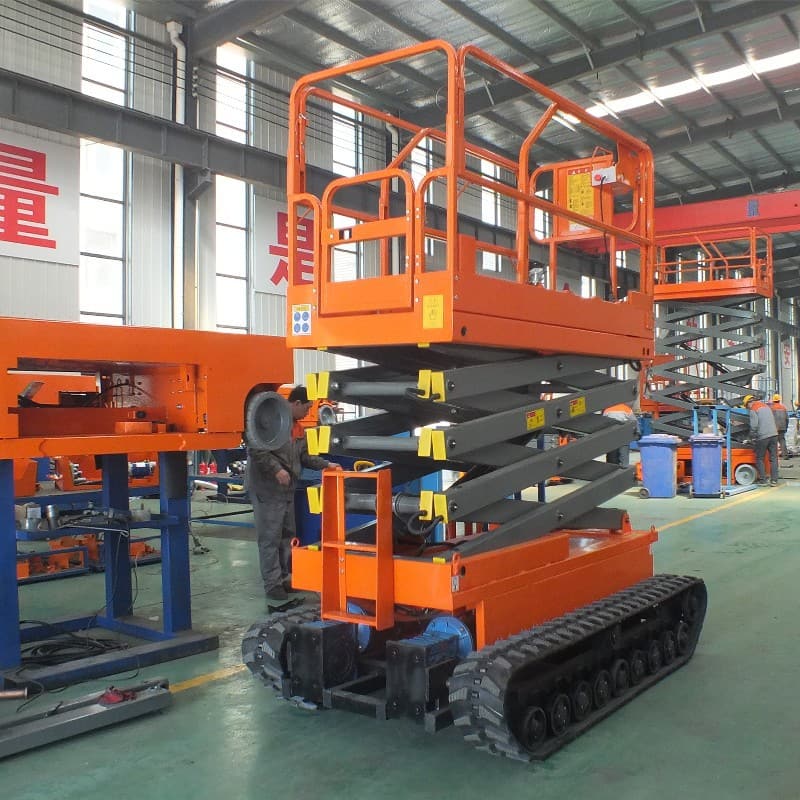

Tracked Scissor Lift (Off Road Scissor Lift)

Crawler hydraulic scissor lift is a kind of lifting platform specially designed for high altitude field work with complex road conditions. The tracked scissor lift has strong environmental adaptability and can be used in the field without power supply and under complex road conditions. Crawler wheels, aggravating chassis, driven by diesel engine lifting equipment, battery storage is controlled and lifting power, through the control button to control the flooding up and down, you can also use diesel engine as lifting power of manual hydraulic control lever of the lever and down, the battery is charged by an external power supply or diesel engine driven generator charge.

tracks the scissor lift from the scissor lift on the road

Rated load 300 (kg)

Maximum height: 10m

Machine weight: 2880 (kg)

Power supply: battery or diesel

Lifting time: 35s

Sertipikasyon: THIS ISO9001 SGS

Material: Heavy Duty Steel Structure

Warranty: 24 Months

Monitored scissor lift parameter table

model table size Overall dimensions Platform height cargo Platform overtaking weight
GTJZ06 2.26 × 0.81 2.655 × 1.35 × 2.33 6M 300KG 0.9 2750kg
GTJZ08 2.26 × 0.81 2.655 × 1.35 × 2.48 8M 300KG 0.9 2880kg
GTJZ10 2.26 × 0.81 2.655 × 1.55 × 2.61 10M 300KG 0.9 3020KG

DFLIFT follows the special design of scissor lift:

Tracked scissor lift uses aggravator chassis, at work, no need a leg, after elevator lift, no need to pack lifting platform cannot walk, greatly improves work efficiency, at the same time, its worm wheel, increased contact area with the ground, the muddy road can also walk and work in the field, oil exploration, the tracked scissor lift is wild field of communication line installation and surveying well, the job is high above ideal equipment.

Why choose DFLIFT?

DFLIFT is a real manufacturer engaged in the research, development, manufacturing, sales and service of aerial work equipment from 4 m to 44 m.
1. We can help customer choose the right model especially..
2. Main elements are used world famous brands.
3. Provide timely delivery, sales engineers are ready to solve all problems.
4. Provide spare parts, work-site installation guide and training operation.
