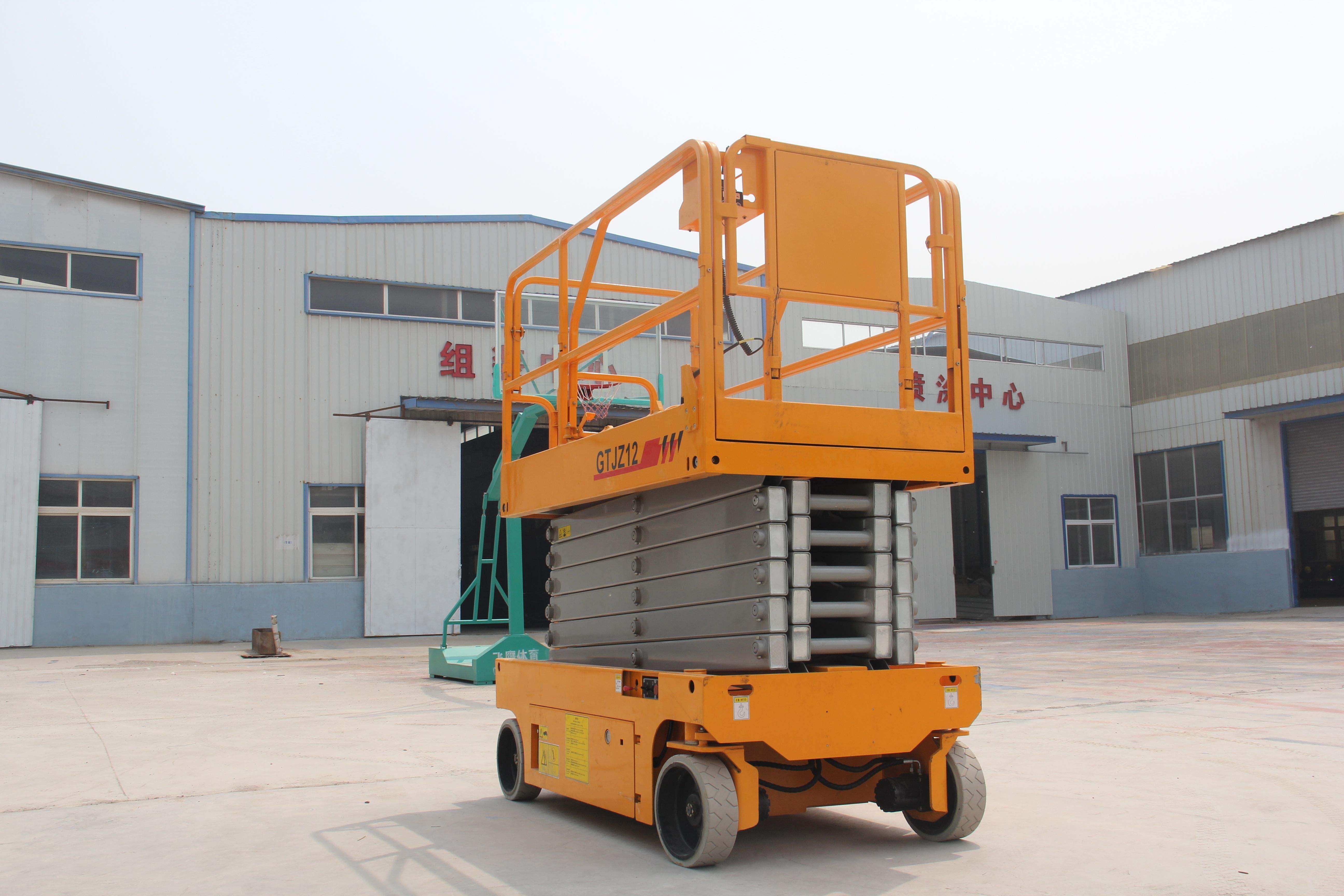

The 20 feet (6 meter) scissor lift is a multi - functional lifting device. Special specifications can be customized according to individual requirements. The 20 feet (6 meter) scissor lift is generally made of high-strength alloy with a strong structure that minimizes the deflection and swing of the lift. With functions of automatic walking, walking three optional power control and the accumulator control, able to work under different conditions, without external power supply, handle control, speed adjustable, mobile and flexible, easy to operate, lift freely, only one person can complete forward, backward, steering, fast, slow to walk and up and down movement, save work and effort. 20 foot (6 meter) scissor lift is suitable for high-altitude operation in stations, docks, airports, power plants, sports venues, large enterprises, etc. It is the most ideal equipment for high-altitude operation at present.
Rated Loading Capacity: 320kg 480kg
Min. Lifting Height: 800mm
Max. Lifting Height: 20 foot (6 meter)
Lift Drive / Actuation: Hydraulic electric
After-sales Service Provided: Field installation, commissioning and training
Platform: Anti-skid Checkered Plate
Voltage: 110V, 220V, 380V, customized
20 foot (6 meter) scissor lift design specification:
Tables
|
Item |
Parameter |
|
Overall Length(mm) |
2485 |
|
Overall Width(mm) |
1170 |
|
Overall Height(Guardrail folding)(mm) |
2472(1908) |
|
Wheel Base(mm) |
1877 |
|
Maximum Working Height(m) |
8m |
|
Maximum Platform Height(m) |
20 foot (6 meter) |
|
Maximum Load Capacity(kg) |
320 |
|
Extension Platform Load(kg) |
115 |
|
Platform Size(mm) |
2276*1120 |
|
Platform Extension Length(mm) |
900 |
|
Lifting Speed of Working Platform(s) |
56 |
|
Falling Speed of Working Platform(s) |
43 |
|
Total Weight(kg) |
2940 |
|
Travel Speed(High Speed)(km/h) |
3.5 |
|
Travel Speed(low Speed)(km/h) |
0.8 |
|
Minimum Turning Radius(m) |
2.5 |
|
Minimum Ground Clearance(mm) |
100/20 |
|
Maximum Grade Ability(%) |
25 |
|
Tire Specification |
381*127 |
|
Battery(V/(Ah)) |
4*6(240) |
|
Charger(A) |
30 |
|
Warning Angle of Inclination (°) |
1.5 |
20 foot (6 meter) scissor lift parts:
The 20 foot (6 meter) scissor lift consists of the following parts:
1, shear fork main structure and telescopic table, and safety fence.
2. Automatic dc driving wheel.
3. Hydraulic system: pump station, cylinder, etc.
4. Dc power supply and charger.
5. Electric control box and operation box.
