Mobile Scissor Lift

Mobile scissor lift, it has the advantages of small size, large lifting capacity, stable platform and cheap cost. It can be seen everywhere in our life. Mobile scissor lift is mainly used for high-altitude work, which brings great convenience and labor-saving experience.

Mobile scissor lift can be roughly divided into hydraulic scissors lifting platform, self-propelled lifting platform, and mobile scissor lift table. DFLIFT has been producing Mobile scissor lift for nearly 20 years. If you are interested in lifting platform, please feel free to consult us.

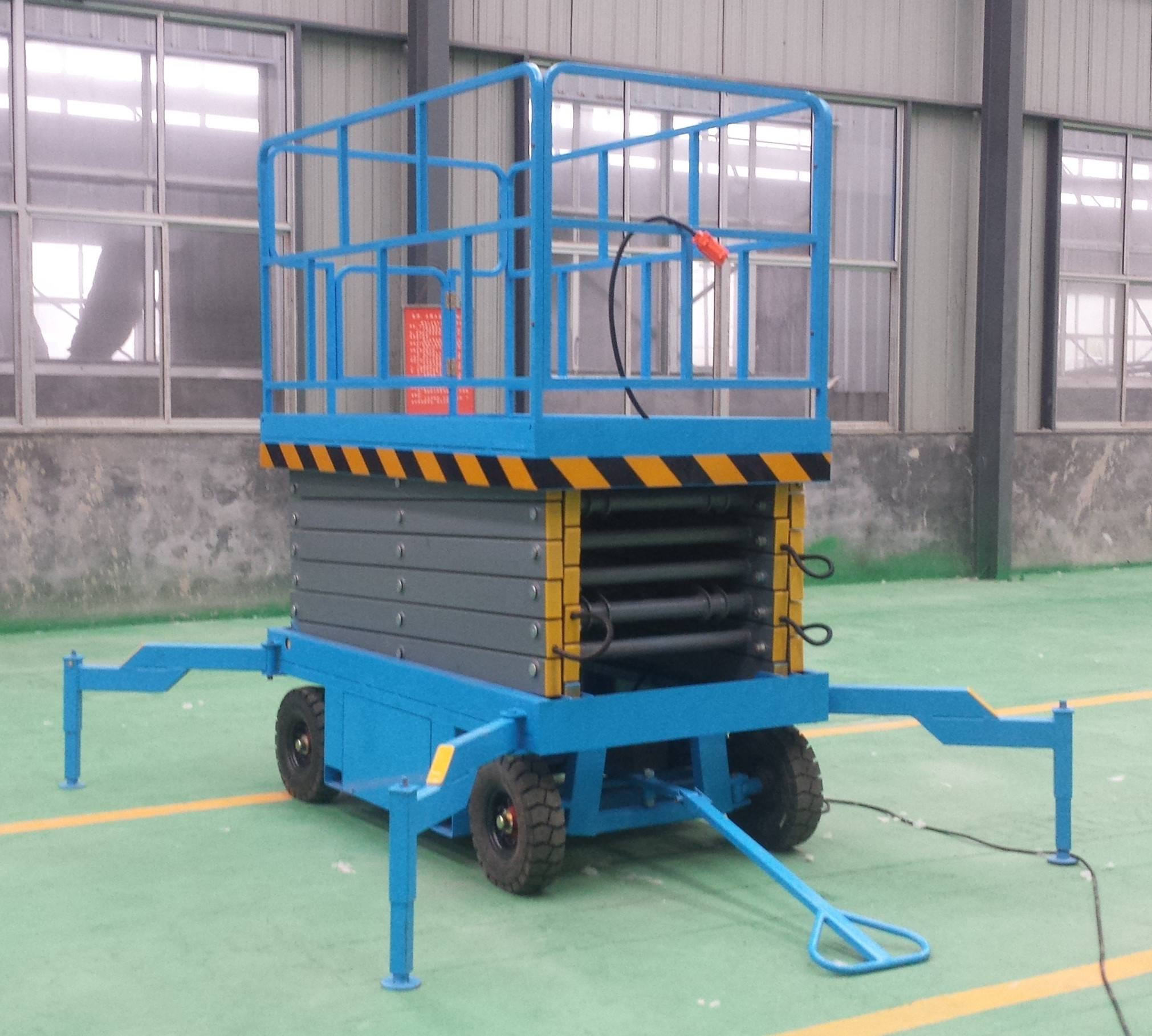

Hydraulic mobile scissor lift for sales

Scissor lift is the most versatile and economical scissor lifting platform, which has many extension methods, such as assisting walking scissor lift, diesel-driven scissor lift and accumulator driven scissor lift. It is cheap in construction, easy to operate and use, with few wearing parts and low maintenance cost. It can reach the highest lifting height of 20 meters and the maximum load of 2000kg, which is the most suitable high-altitude working platform for large shopping malls, factories, enterprises and municipal gardens.

Mobile scissor lift manufacturer

mobile scissor lift

Rated load: 300kg 500kg 1000kg 2000kg

Lifting height:3m 6m 8m 10m 12m 14m 16m 18m 20m

Walking mode: hand pull or assist walking

Power supply: ac, battery, diesel, manual

Type: Electric Hydraulic

Hydraulic mobile scissor lift parameter

Tables

Hydraulic mobile scissor lift specification:
Type model Lifting height(m) Load(kg) Table size(mm) Dimensions(mm) power power(kg)
Mobile scissor lift platform HTSJY0.5-6 6 500 2100*830 2250*950*1200 380V/1.5KW 850
Mobile scissor lift platform HTSJY0.5-8 8 500 2100*930 2250*1060*1380 380V/1.5KW 950
Mobile scissor lift platform HTSJY0.5-10 10 500 2100*1200 2200*1350*1550 380V/2.2KW 1400
Mobile scissor lift platform HTSJY0.5-12 12 500 2550*1530 2800*1700*1750 380V/3KW 2200
Mobile scissor lift platform HTSJY0.5-14 14 500 2810*1500 3070*1730*1850 380V/3KW 2400
Mobile scissor lift platform HTSJY0.5-16 16 500 2810*1600 3070*1810*2080 380V/4KW 3500
Mobile scissor lift platform HTSJY0.5-18 18 500 3070*1600 3350*1810*2080 380V/4KW 3900

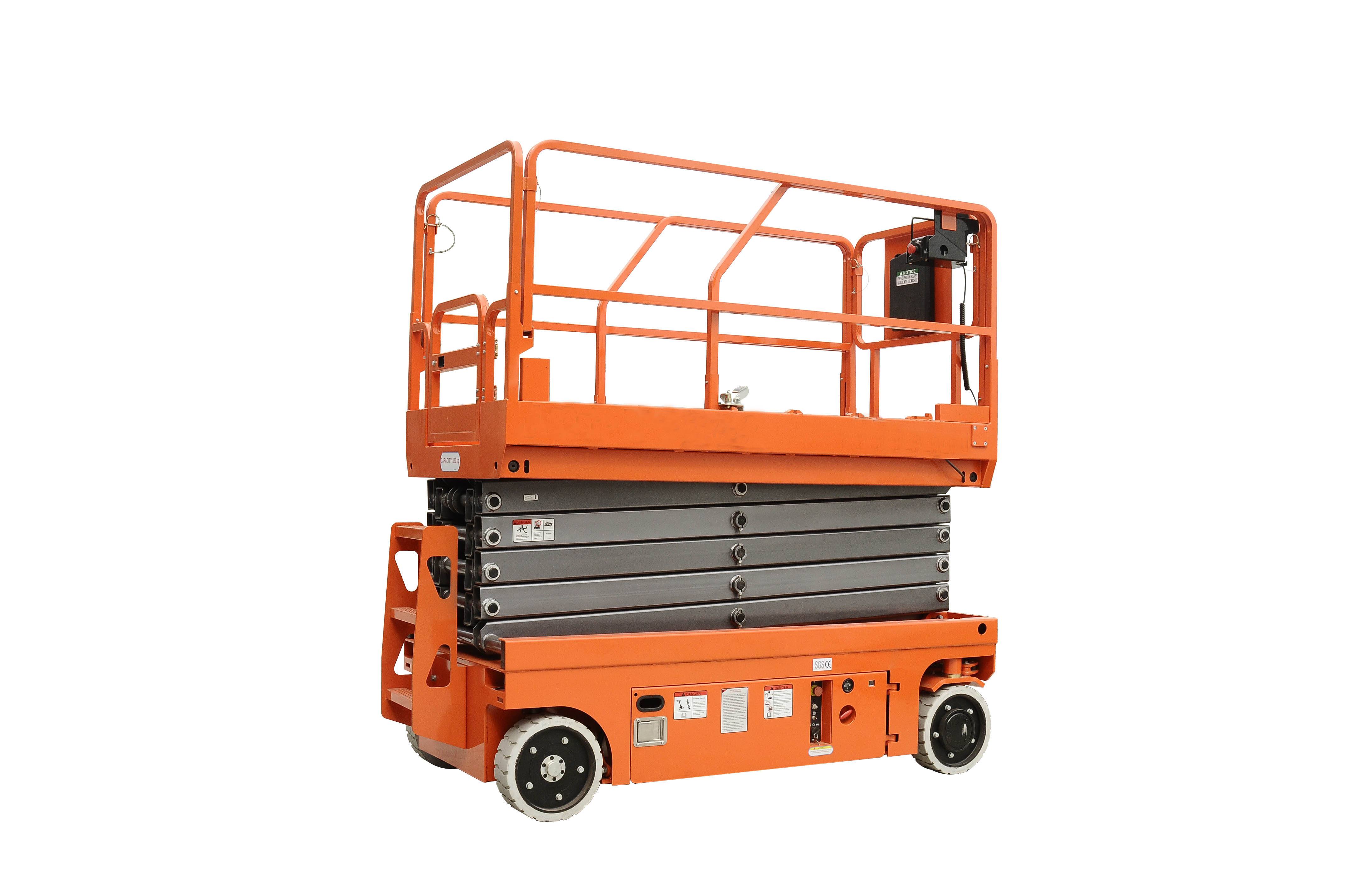

Self-propelled scissor lift price

Electric self-propelled scissor lift platform appearance beautiful, with multiple protection and lift the patent, its biggest advantage is people can walk, standing on the platform control Self-propelled scissor lift it through hydraulic linkage steering, hydraulic driving, walking people standing on the platform holds control lever can easily control walking speed, hoisting and lifting speed, can be in any one place to stop, hoisting and lifting is proportional speed control can be very precise positioning and hover. DFLIFT Self-propelled scissor lift are the largest export products, welcome your consultation.

Self propelled scissor lift

Rated Loading Capacity: 320kg 480kg

Min. Lifting Height: 800mm

Max. Lifting Height:16000mm

Main Material: High duty steel

After-sales Service Provided: Field installation, commissioning and training

Platform: Anti-skid Checkered Plate

Voltage: 110V,220V,380V, customized

Technical parameter for Electric self-propelled scissor lift aerial working platform

Product Specifications GTJZ 06 GTJZ 08 GTJZ 10 GTJZ12
working height 7.8m 10m 12m 13.8m
platform height 5.8m 8m 10.0m 12m
platform height stowed 1.07m 1.23m 1.37m 1.49m
platform length 1.67m 2.27m 2.27m 2.27m
platform extension length 0.9m 0.9m 0.9m 0.9m
platform width 0.76m 0.81m 1.17m 1.17m
Overall Height 2.18m 2.34m 2.48m 2.59m
Overall length 1.86m 2.42m 2.42m 2.42m
Overall Width 0.76m 0.81m 1.17m 1.17m
Wheelbase 1.31m 1.87m 1.87m 1.87m
Ground Clearance 0.1m 0.1m 0.1m 0.1m
Lift capacity 230kg 230kg 320kg 320kg
Lift Capacity-Extension Deck 113kg 113kg 113kg 113kg
Lift-Up 27s 37s 45s 50s
Lift-Down 22s 32s 35s 38s
Weight 1415kg 2250kg 2440kg 2860kg
Drive Speed(Platform Elevated) 0-5km/h 0-3.5km/h 0-3.5km/h 0-3.5km/h
Drive Speed(Platform Lowered) 0-0.8km/h 0-0.8km/h 0-0.8km/h 0-0.8km/h
Turning Radius-outside 0 0 0 0
Turning Radius-inside 1.64m 2.10m 2.14m 2.14m
Grade ability 30% 25% 25% 25%
Maximum Tilt
Non-marking solid tires 15*5 15*5 15*5 15*5
Battery 6v*4/225Ah 6v*4/225Ah 6v*4/225Ah 6v*4/225Ah
Charger 30A automatic 30A automatic 30A automatic 30A automatic

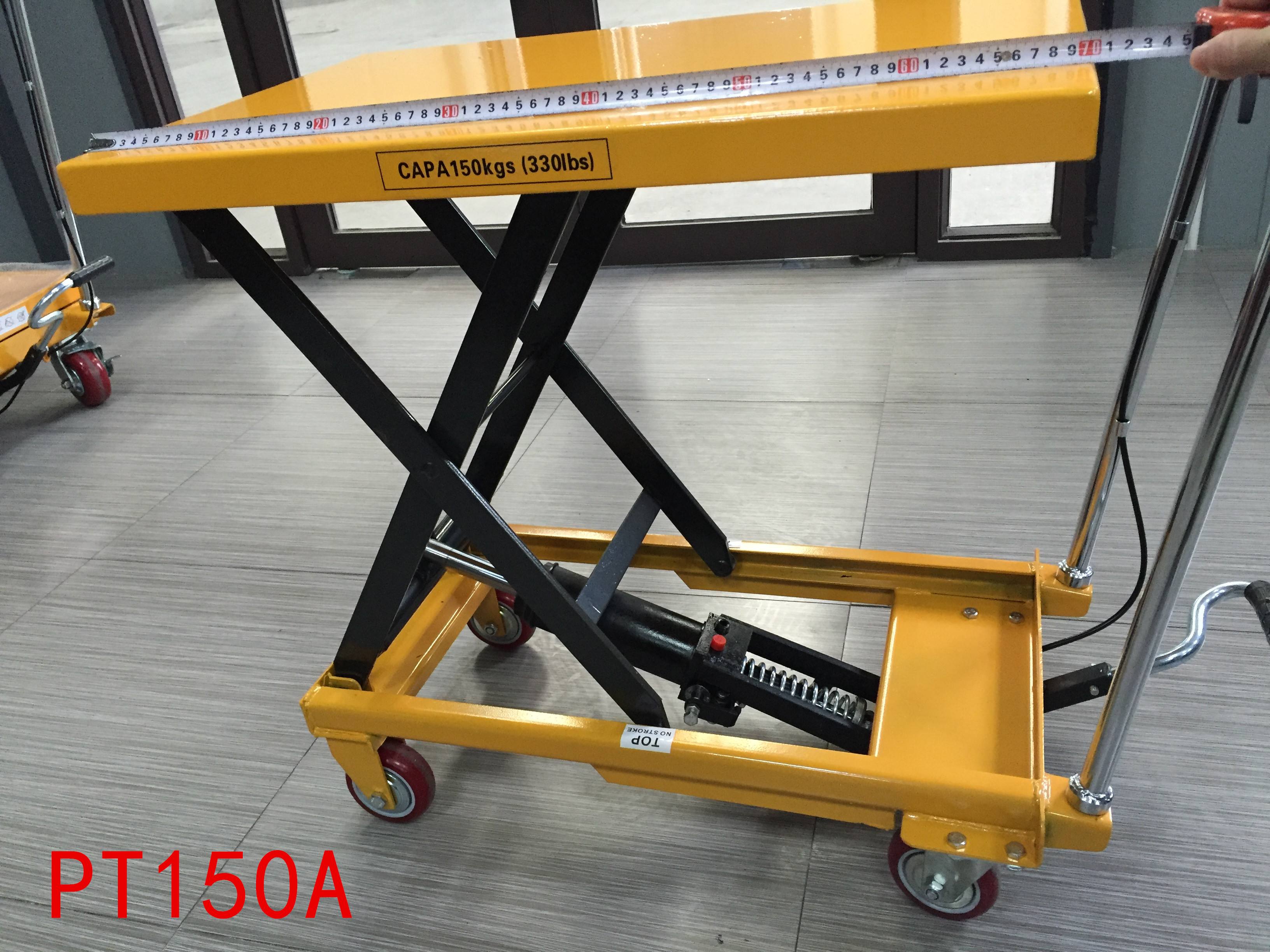

Mobile scissor lift table for sales

Mobile scissor lift table is valuable material handing for use as a feeding on assembly line.
With new heavy duty steel construction design, this lift table can give user safety guard.
Mobile scissor lift table large working table of this lift table can offer enough space while working.
Hand operated table descent control.
Easy action foot operated hydraulic lift for raising lift table top to desired level.
Robust castors with safety wheel guard and brakes on the two swivel castors, for greater safety wheel loading and unloading.
Mobile scissor lift table is with option: chrome plated handle, painted handle, folding handle and slid handle.

Mobile mini scissor lift table

Mobile scissor lift table

Capacity: 150-3000KG

Lift Drive / Actuation: Hydraulic

Min. Lifting Height: 350mm

Hydraulic: Foot-type hydraulic

Product Type: Mini scissor lift table

DFLIFT CYT300ES mini scissor lift table

1) mini scissor lift table Features

- Rugged steel construction to handle heavy transporting, lifting and positioning work.
- Scissor lift table is easily raised by hydraulic foot pedal. Rolls on 2 fixed and 2 swivel casters for pinpoint positioning.
- Foot operated locks on swivel casters.
- It is easy to read the weight of loading goods through the weight system.
- FOB Shipping Point.

2) mini scissor lift table Specification Data

Model   CYT300ES
Load Capacity kg 300
Min. Height mm 350
Max. Heightg mm 970
Tabel Dimensions mm 820x500
Total Length mm 1070
Handle Height mm 970
Net Weight kg 90
Packing Dimensions mm 900x520x360
Remark   *ES= with digital scale

Our DFLIFT advantages

1.Lead time 1-2 weeks
2.Packing Standard export fumigated wooden pallet, foam rubbers
3.Payment term T/T payment in advance; L/C at sight.
4.Lead term FOB Shanghai or CFR/CIF
5.Warranty period 12 months
6.Shipping method By sea or air; by express.
