Towable scissor lift is a multi - functional lifting and loading and unloading machinery equipment. Towable scissor lifting platform is divided into four mobile lifting platform, two wheel traction lifting platform, car modification lifting platform, ac and dc dual-use lifting platform, battery car lifting platform, lifting height from 1 meter to 18 meters.
Can also be customized according to user requirements of special specifications of the lifting platform. It is used in the aerial work and maintenance of factories, automatic warehouses, parking lots, municipal administration, wharves, construction, decoration, logistics, electric power, transportation, petroleum, chemical industry, hotel, gymnasium, industrial and mining enterprises, etc. Lifting platform lifting system, is driven by hydraulic pressure, so it is called Towable hydraulic scissor lift.

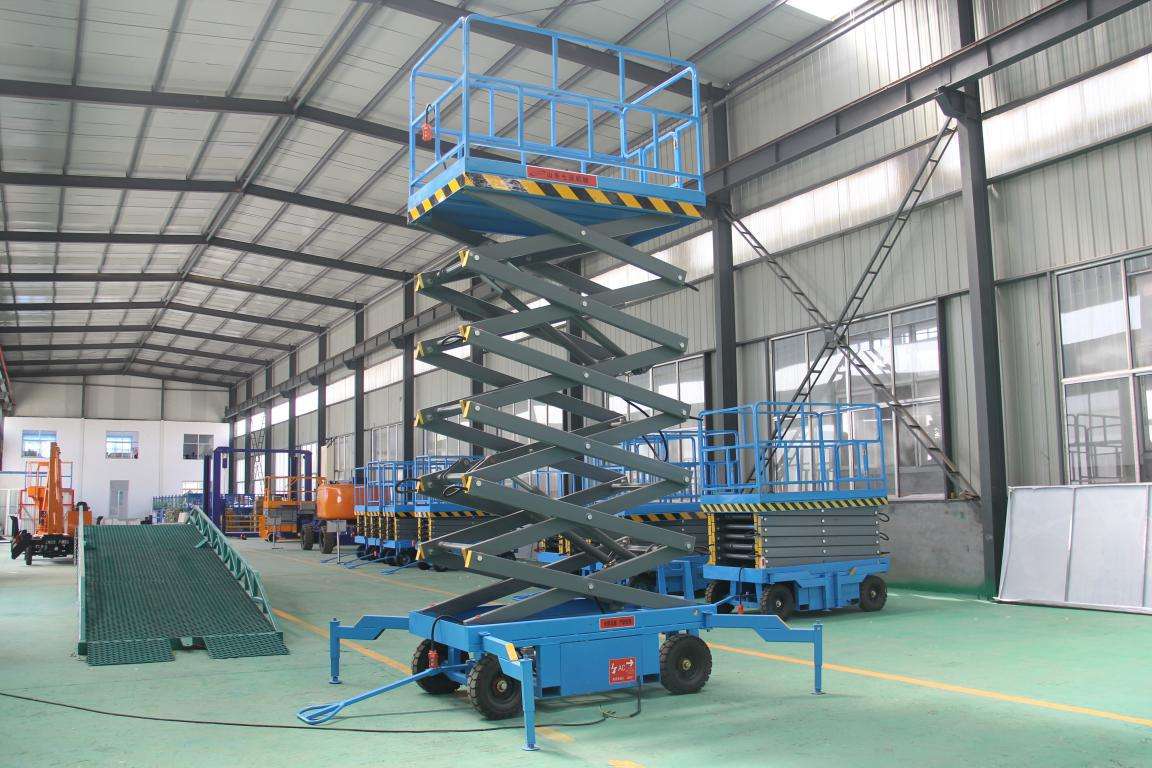

Towable scissor lift
Load capacity: 300kg-2000kg
Max. Lifting Height：18m
Lifting speed: 4-6m/min
Power: AC&DC choice
Electric hydraulic model
Towable scissor lift parameter table
Tables
Model
Lifting height
Load capacity
Working table
Size
Power
Weight
m
KGS
mm
mm
KW
KGS
SJY0.3-4
4
300
1640*900
2150*1200*1000
1.5
480
SJY0.3-6
6
300
1640*900
2150*1200*1150
1.5
650
SJY0.5-6
6
500
1640*900
2200*1200*1290
2.2
750
SJY0.5-6B
6
500
1640*900
2100*1500*1400
2.2
750
SJY1-6
6
1000
1700*1200
2150*1200*1350
2.2
950
SJY0.3-8
8
300
1750*900
2150*850*1400
2.2
900
SJY0.5-8
8
500
1800*1200
2200*1500*1350
2.2
1000
SJY0.5-8B
8
500
1750*900
2150*1200*1350
2.2
900
SJY1.0-8
8
1000
2000*1200
2400*1500*1530
2.2
1500
SJY0.3-10
10
300
2100*1200
2500*1500*1530
2.2
1300
SJY0.5-10
10
500
2100*1200
2500*1500*1530
2.2
1400
SJY1.0-10
10
1000
2200*1300
2650*1600*1740
3.0
2200
SJY0.3-9
9
300
1800*1200
2200*1500*1450
2.2
950
SJY0.3-11
11
300
2100*1200
2600*1500*1650
2.2
1850
SJY0.3-12
12
300
2550*1500
2950*1950*1740
3.0
2200
SJY0.5-12
12
500
2550*1500
3000*1950*1850
3.0
2350
SJY1.0-12
12
1000
2600*1500
3200*2000*2130
3.0
3000
SJY0.3-14
14
300
2990*1500
3250*1950*1970
3.0
2900
SJY0.5-14
14
500
3050*1500
3300*2000*1970
3.0
3000
SJY1.0-14
14
1000
3050*1600
3400*2200*2300
3.0
3600
SJY0.3-16
16
300
3150*1600
3600*2000*2300
3.0
3650
SJY0.5-16
16
500
3200*1600
3600*2000*2300
3.0
3900
SJY0.3-18
18
300
3150*1800
3700*2100*2500
3.0
4500
SJY0.3-20
20
300
3400*1800
3800*2100*2500
3.0
4900
Towable scissor lift design advantages：
1) Working heights: 4 m,6 m,8 m,10 m,12 m,14 m,16 m,18 m,20 m
2) High strength steel structures smoothly lift up and drop down, easily operated, few faults.
3) Power sources: local power available at the working sites(110 V,220 V,380 V,415 V),diesel engines and generators.
4) Moving method: 4 wheel and 2 wheel types are optional; it can be pneumatic rubber tyres, solid rubber tires or polyurethane tires.
5) High working capacity, easily pushed around, most spacious platforms for several people to work on.
We can also design new one for you
Just let's know these data:
1) Lift height
2) Load capacity
3) Platform size
Why did you choose our towable scissor lift?
1.) The lift has hydraulic overload protective organization to ensure that equipment will not lift when the load beyond its rated load capacity.
2.) The platform equipped with anti-skid plate to prevent slipping, it is enough safe when works on the platform.
3.) In special circumstance, the scissor lift will use explosion-proof electric equipment
4.) The scissor lift equipped single control solenoid valves to prevent the platform dropping if power failure. You can open the manual dropped valve to lower the platform to the home position.
