30 Foot (9 Meter) Scissor Lift

The main features of 30 foot (9 meter) scissor lift are as follows: the operator can control the lifting and walking of the machine without getting down the lifting platform, and can control the equipment to drive to other working places on the platform. The device itself has the function of walking and steering drive, without manual traction and external power supply. It is ideal equipment for safe operation in modern enterprises.

 foot scissor lift

30 foot (9 meter) scissor lift parameter

Rated Loading Capacity: 320kg 480kg

Min. Lifting Height: 800mm

Max. Lifting Height: 30 foot (9 meter)

Lift Drive / Actuation:

Hydraulic electric

After-sales Service Provided: Field installation, commissioning and training

Platform: Anti-skid Checkered Plate

Voltage: 110V, 220V, 380V, customized

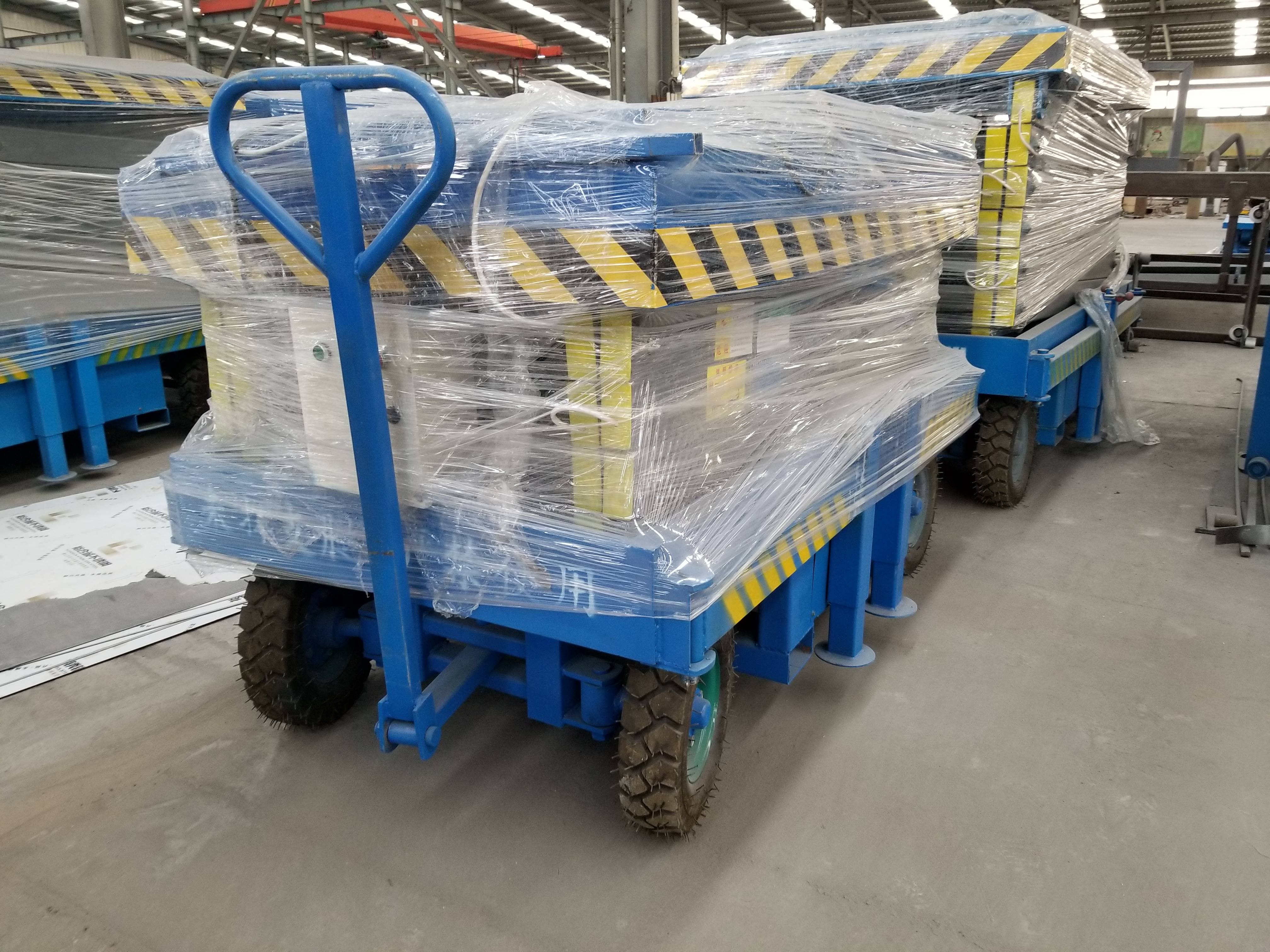

30 foot (9 meter) tow able scissor lift

 foot tow able scissor lift

Load capacity: 300kg-2000kg

Max. Lifting Height:30 foot (9 meter)

Lifting speed: 4-6m/min

Power: AC&DC choice

Electric hydraulic model

30 foot (9 meter) tow able scissor lift detailed parameters:

Tables

Product Specifications

SJYZ06A

Working height

9m

Platform height

7m

Platform height stowed

1.07m

Platform length

1.67m

Platform extension length

0.9m

Platform width

0.76m

Wheelbase

1.31m

Ground Clearance

0.1m

Lift capacity

380kg

Lift Capacity-Extension Deck

113kg

Lift-Up

27s

Lift-Down

22s

Self-Weight

1850kg

Drive Speed(Platform Elevated)

0-5km/h

Drive Speed(Platform Lowered)

0-0.8km/h

Turning Radius-inside

1.64m

Grade ability

30%

Maximum Tilt

Non-marking solid tires

15*5

Battery

6v*4/225Ah

30 foot (9 meter) tow able scissor lift design advantages:

  • The lifting mechanism adopts high strength manganese steel rectangular control;
  • With lifting platform overload hydraulic safety protection system;
  • Equipped with anti-fall safety protection device to prevent pipe blowout;
  • 30 foot (9 meter)  scissor lift has equipped with manual control valve for emergency descending in case of power failure;
  • Optional with telescopic table, to expand the scope of aerial work;
  • Pneumatic tires or solid tires are optional;
  • Optional manual hydraulic pump as lifting power.
  • Alternating current two - phase electricity or three - phase electricity for power.
  • Optional dc battery or diesel engine power.
  • Explosion-proof electrical appliances are optional for power

30 foot (9 meter) scissor lift manufacturer:

DFLIFT machinery introduction of advanced assembly line production process, robot welding, CNC cutting, high-precision steel bending, batch custom special materials profile, shot blasting paint processing, lossless batch assembly! 30 foot (9 meter) scissor lift, hydraulic scissor lift and other high-end lifting machinery recently mass production! DFLIFT machinery with high-end technology to create quality lifting machinery, sell low-end prices, create a new starting point for the lift industry! Dealers in hot investment! DFLIFT machinery, only do fine products; do China's most influential lift!
