200kg scissor lift for sale
200 kg scissor lift platform is a kind of vertical lifting equipment for transporting people or things. At present, the characteristics of free lifting platform have been widely used in municipal maintenance, cargo transportation of wharf and logistics center, building decoration, etc. It has installed automobile chassis, battery car chassis, etc. It can walk freely, and the working height space has also changed. 200 kg scissor lift it has the characteristics of light weight, self-walking, electric starting, self-supporting legs, simple operation, large working surface, and can cross obstacles to carry out high-altitude operations, such as 360 degrees. Free rotation advantage.
200kg battery scissor lift table supplier
Rated Loading Capacity：200kg
Max. Lifting Height：2m
Lift Drive / Actuation:
Electric Motor or manual
Type: Scissor Hydraulic Lift
Best price of Mechanical lift table scissor lift table 100kg
The Electric hand hydraulic lift table trolley has novel design, reasonable mechanism and convenient use. It is suitable for loading, unloading, handling and stacking of factories, workshops, warehouses and oil depots. 200kg scissor lift trolley is especially suitable for chemical industry, food workshop dumping or batching, and can be used for heavy objects. Loading and unloading cars, stacking, and hydraulic drum handling can greatly improve work efficiency and reduce labor intensity. It can also be modified for loading and unloading and lifting heavy objects. 200kg scissor lift table is a new type of ideal multi-purpose. Take-off and landing machinery.
Product Description
| Name | Type | Loading capacity | Table size | Height increase | Net weight |
| PT150A | 150kg | 700*450*35mm | 210-720mm | 40kg | |
| Scissor lift table | PT150B | 150kg | 700*450*35mm | 302-1260mm | 80kg |
| PT300 | 300kg | 815*500*50mm | 280-900mm | 76kg | |
| PT350 | 350kg | 905*500*50mm | 350-1300mm | 106kg | |
| PT500A | 500kg | 815*500*50mm | 280-900mm | 82kg | |
| PT500B | 500kg | 905*500*50mm | 350-1500mm | 110kg | |
| PT800A | 800kg | 1000*510*55mm | 415-1000mm | 128kg | |
| PT800B | 800kg | 1200*610*58mm | 450-1500mm | 165kg | |
| PT1000A | 1000kg | 1000*510*55mm | 415-1000mm | 137kg | |
| PT1000B | 1000kg | 1200*610*80mm | 500-1700mm | 225kg | |
| PT1500 | 1500kg | 1200*610*80mm | 380-1000mm | 200kg | |
| PT2000 | 2000kg | 1200*610*80mm | 380-1000mm | 230kg |
200kg mobile hydraulic scissor lift for sale
Rated Loading Capacity：200/320kg
Max. Lifting Height：12 meter
Control: JOYSTICK ELECTRONIC
Power supply: battery or diesel
SELF PROPELLED MAN LIFT FOR AERIALWORK MAINTENANCE
200kg mobile hydraulic scissor lift can move at a slow speed during lifting or at a fast speed during folding. People can move flexibly when standing on the workbench and controlled by the control lever. The 200kg mobile hydraulic scissor lift has abrasive wheels and high-strength mesa. All accessories are made of Chinese first-class or internationally renowned brands.

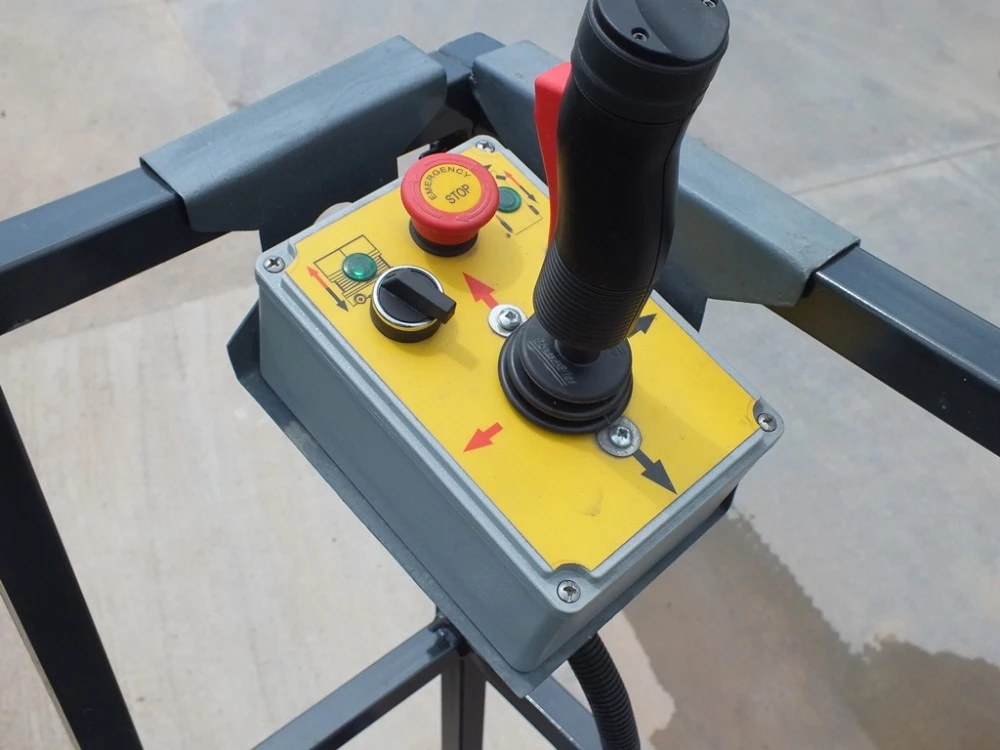

200kg mobile hydraulic scissor lift handles
200kg self-propelled lifting platform parameter table
| terms | 07series | 08series | 12series | 14series | ||||
| models | GTJZ | |||||||
| 0807DC | 0808DC | 1008DC | 1012DC | 1212DC | 1412DC | 1414DC | 1614DC | |
| capacity | 230kg | 380kg | 230kg | 450kg | 320kg | 320kg | 450kg | 200kg |
| Capacity-extension deck | 113kg | 113kg | 113kg | 113kg | 113kg | 113kg | 113kg | 113kg |
| Max occupancy | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 |
| Max working | 7.80m | 8.20m | 10.10m | 10.10m | 12.00m | 13.80m | 13.50m | 15.70m |
| height-A | ||||||||
| Max platform | 5.80m | 6.20m | 8.10m | 8.10m | 10.00m | 11.80m | 11.50m | 13.70m |
| height-B | ||||||||
| Length-C | 1.86m | 2.42m | 2.42m | 2.42m | 2.42m | 2.42m | 2.79m | 2.79m |
| Width-D | 0.76m | 0.83m | 0.83m | 1.17m | 1.17m | 1.17m | 1.27m | 1.27m |
| Height(railings | 2.19m | 2.24m | 2.37m | 2.36m | 2.49m | 2.62m | 2.49m | 2.62m |
| unfolded) | ||||||||
| Height-E | 1.85m | 1.94m | 2.07m | 1.80m | 1.93m | 2.06m | 1.93m | 2.06m |
| (railing folded) | ||||||||
| Platform size | 1.67m× | 2.27m× | 2.27m× | 2.27m× | 2.27m× | 2.27m× | 2.64m× | 2.64m× |
| (L×w-F) | 0.74m | 0.83m | 0.83m | 1.14m | 1.14m | 1.14m | 1.14m | 1.14 m |
| Extension deck | 0.90m | 0.90m | 0.90m | 0.90m | 0.90m | 0.90m | 0.90m | 0.90m |
| size -G | ||||||||
| Ground | 0.10m | 0.10m | 0.10m | 0.10m | 0.10m | 0.10m | 0.10m | 0.10m |
| clearance | ||||||||
| (stowed) | ||||||||
| Ground | 0.02m | 0.02m | 0.02m | 0.02m | 0.02m | 0.02m | 0.02m | 0.02m |
| clearance | ||||||||
| (elevated) | ||||||||
| wheelbase | 1.40m | 1.87m | 1.87m | 1.87m | 1.87m | 1.87m | 2.24m | 2.24m |
| Min turning | 0m | 0m | 0m | 0m | 0m | 0m | 0m | 0m |
| radius | ||||||||
| (inside) | ||||||||
| Min turning | 1.60m | 2.25m | 2.25m | 2.23m | 2.23m | 2.23m | 2.25m | 2.25m |
| radius | ||||||||
| (outside) | ||||||||
| Driving motor | 24V/1.5kw | 24V/1.5kw | 24V/1.5kw | 24V/1.5kw | 24V/1.5kw | 24V/1.5kw | 24V/1.5kw | 24V/1.5kw |
| Lifting motor | 24V/2.0kw | 24V/3.3kw | 24V/3.3kw | 24V/3.3kw | 24V/3.3kw | 24V/4.5kw | 24V/4.5kw | 24V/4.5kw |
| Driving speed | 4.0km/h | 4.0km/h | 4.0km/h | 4.0km/h | 4.0km/h | 4.0km/h | 4.0km/h | 4.0km/h |
| (stowed) | ||||||||
| Driving speed | 0.8km/h | 0.8km/h | 0.8km/h | 0.8km/h | 0.8km/h | 0.8km/h | 0.8km/h | 0.8km/h |
| (elevated) | ||||||||
| Lifting/lowering | 18/22sec | 24/34sec | 28/40sec | 28/40sec | 45/36sec | 50/38sec | 60/45sec | 80/60sec |
| speed | ||||||||
| batter | 4×6V/ | 4×6V/ | 4×6V/ | 4×6V/ | 4×6V/ | 4×6V/ | 4×12V/ | 4×12V/ |
| 225Ah | 225Ah | 225Ah | 225Ah | 240Ah | 260Ah | 300Ah | 300Ah | |
| charger | 24V/25A | 24V/25A | 24V/25A | 24V/25A | 24V/25A | 24V/25A | 24V/25A | 24V/25A |
| Max | 0.25 | 0.25 | 0.25 | 0.25 | 0.25 | 0.25 | 0.25 | 0.25 |
| grade ability | ||||||||
| Max tilt | 3°/1.5° | 3°/2° | 3°/1.5° | 3°/2° | 3°/2° | 3°/1.5° | 3°/2° | 3°/1.5° |
| tires | Φ323× | Φ381× | Φ381× | Φ381× | Φ381× | Φ381× | Φ381× | Φ381× |
| 100mm | 127mm | 127mm | 127mm | 127mm | 127mm | 127mm | 127mm | |
| Weight | 1260kg | 2020kg | 2140kg | 2270kg | 2520kg | 3140kg | 3060kg | 3220kg |
200kg scissor lift Product advantages
Brand New DFLIFT Small 200KG Hydraulic Scissor Lift Table / Trolley
- Large working table of this lift table can offer enough space while working.
- Easy action foot operated hydraulic lift for raising lift table top to desired level.
- Hand operated table descent control, valuable use as a feeding on assembly line.
- Hot deal Hydraulic double scissor lift table design, this lift table can give user safety guard.
- Robust castors with safety wheel guard and brakes on the two swivel castors, make it more safe.
- This lift table is with option: chrome plated handle, painted handle, folding handle and silicone handle.
200kg scissor lift Table / Trolley sale price.
DFLIFT is the source factory of scissor lifts worldwide, we have the most advantageous price and quality of products, our products are exported to many countries in the world, we have many years of service experience, if you have any needs, please contact us.
