Electric Scissor Lift

Generally speaking, electric scissor lift can be divided into mobile electric scissor lift and stationary electric scissor lift, which plays an important role in daily life and industrial production. DFLIFT is an enterprise dedicated to the production and manufacturing of scissor lift. Our lifting platform has low price and high quality.

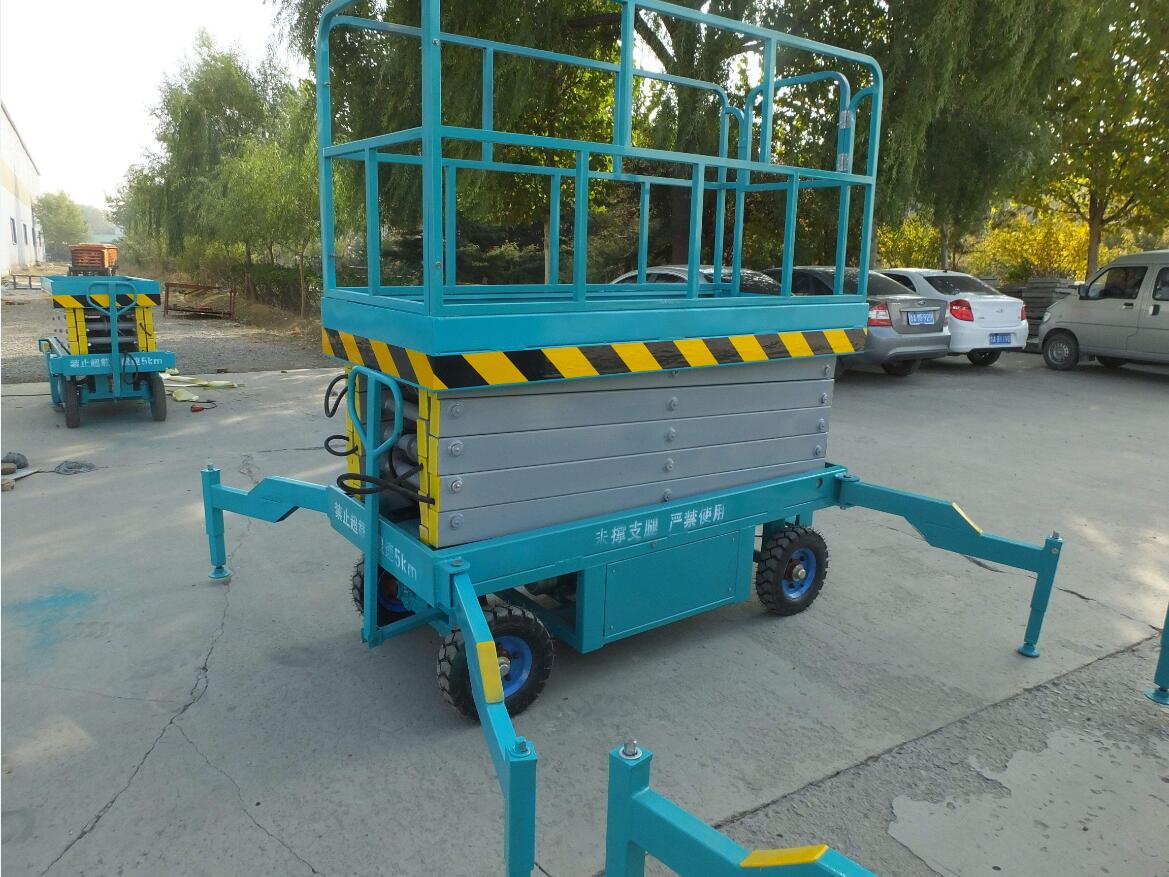

Mobile electric scissor lift for sale:

Mobile electric scissor lift 1

Mobile electric scissor lift parameters:

Rated load: 300kg 500kg 1000kg 2000kg

Lifting height:3m 6m 8m 10m 12m 14m 16m 18m 20m

Walking mode: hand pull or assist walking

Power supply: ac, battery, diesel, manual

Type:Electric Hydraulic

Pull-type electric scissor lift Is the most widely used, it is low cost, can adapt to a variety of working environment, lifting weight, lifting height is high, can use three-phase electricity can also use a battery, pumping leg to ensure the stability of the platform when working.

Electric scissor lift trolley manufacturer:

Electric scissor lift trolley

Capacity: 150-3000KG

Lift Drive / Actuation: Hydraulic

Min. Lifting Height: 350mm

Hydraulic: Electric hydraulic

Product Type: Electric scissor lift table

The Electric scissor lift table is made of high-strength steel. The design structure is reasonable, safe, stable and reliable. The built-in safety valve, fully sealed oil cylinder, manual control hydraulic system lifting, easy and simple operation. Electric scissor lift table is equipped with a nylon guide wheel to save the operator's physical strength and protect the load wheel and the pallet load wheel. Unique hydraulic pump design, easy to pump to maintain a desired height for assembly line loading and unloading operations; plus unique ergonomic design for operator comfort.

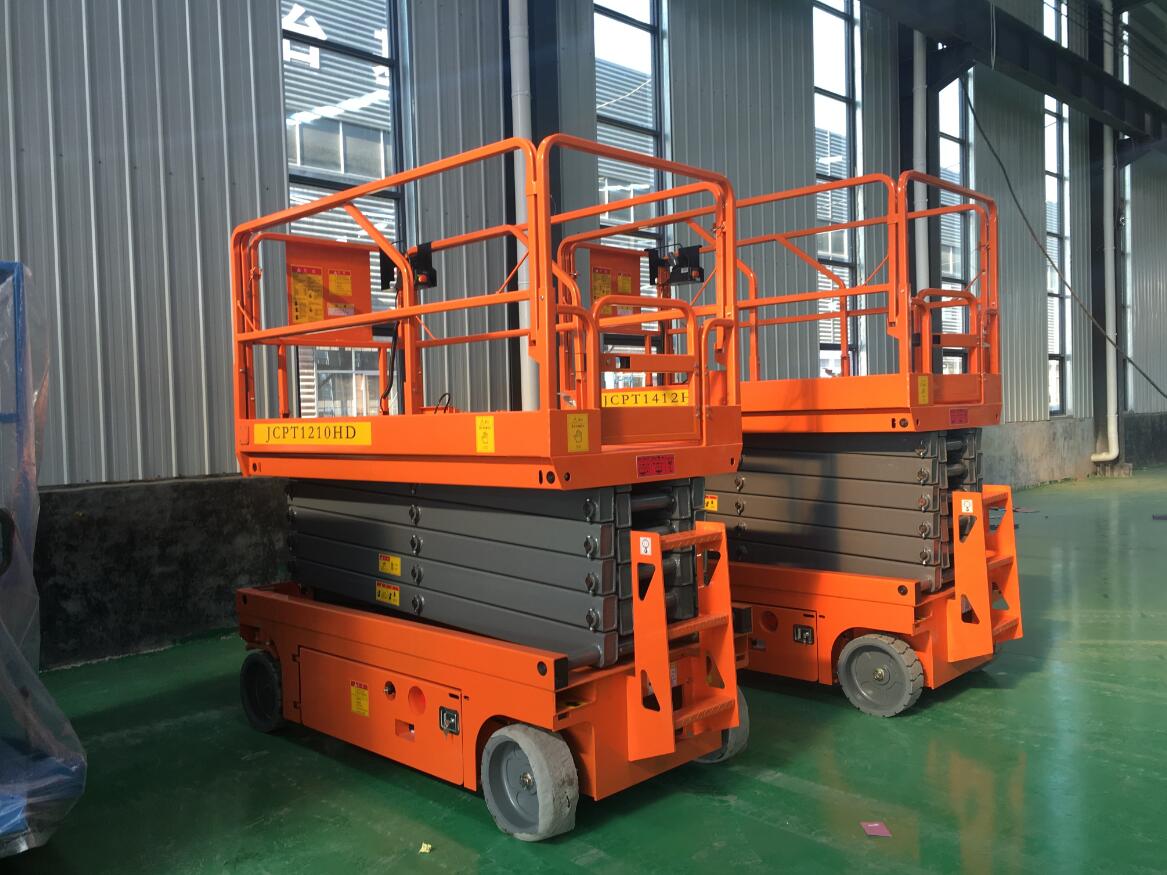

Electric automatic Scissor lift:

Electric automatic Scissor lift 1

Electric automatic Scissor lift parameter:

Rated Loading Capacity: 320kg 480kg

Min. Lifting Height: 800mm

Max. Lifting Height:16000mm

Main Material:High duty steel

After-sales Service Provided: Field installation, commissioning and training

Platform: Anti-skid Checkered Plate

Voltage: 110V,220V,380V, customized

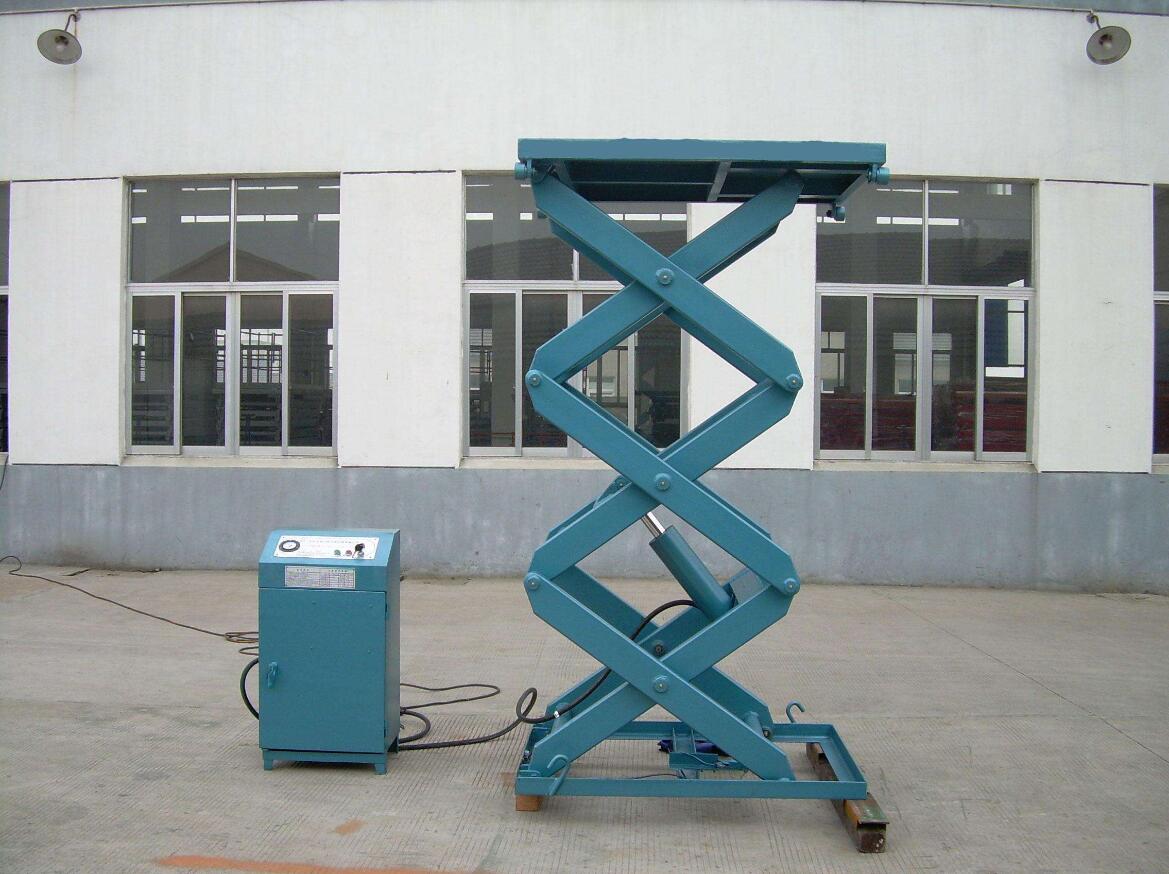

Electric stationary scissor lift for sales:

Electric stationary scissor lift 1

Electric stationary scissor lift parameter:

Rated Loading Capacity: 500kg-100ton

Max. Lifting Height: 6m

Type: Electric hydraulic

Power supply: three-phase alternating current

Table size: specified by customer

Electric stationary scissor lift description:

Building requirements: the foundation pit is provided with waterproof layer, the dimensional error is less than 10mm, the foundation thickness is more than 200mm, and C20 C30 concrete is adopted.
Power distribution: Configure the corresponding distribution box according to the motor power of the lifting platform. The standard power supply for the lifting platform is a three-phase four-wire AC 380V power supply.
Pre-embedded pipe: 2 pipes are laid from the foundation pit of the hydraulic station (can enter in any direction of the foundation pit), and the radius of the pipe corner "R" is greater than 40mm.
Hydraulic station: The position of the hydraulic station is determined by the owner according to the nearest and convenient operation principle.

The electric stationary scissor lift is mainly used for transporting goods between the high floors of buildings. The products are mainly transported up and down between various working layers; the car lifts in the three-dimensional garage and the underground garage. The electric stationary scissor lift is equipped with anti-drop and overload safety protection devices. Operation buttons can be set on each floor and work surface to achieve multi-point control. The Electric stationary scissor lift has a solid structure, large carrying capacity, stable lifting, easy installation and maintenance, and is an ideal cargo for economical and practical replacement of elevators between low floors. According to the installation and use requirements of the lifting platform, different optional configurations can be selected for better use.


Electric scissor lift Optional:
Optional explosion-proof electrical for explosion-proof applications
Optional guide rails and guide wheels for a more stable lifting platform
Optional external hydraulic power unit for easy maintenance
Optional iron chain, gear lever, sliding door, etc.
Multi-point control available on request
Optional jog or self-assured button operation according to requirements
Optional elevator running warning light or warning bell
Configurable external door open lock lift safety switch
