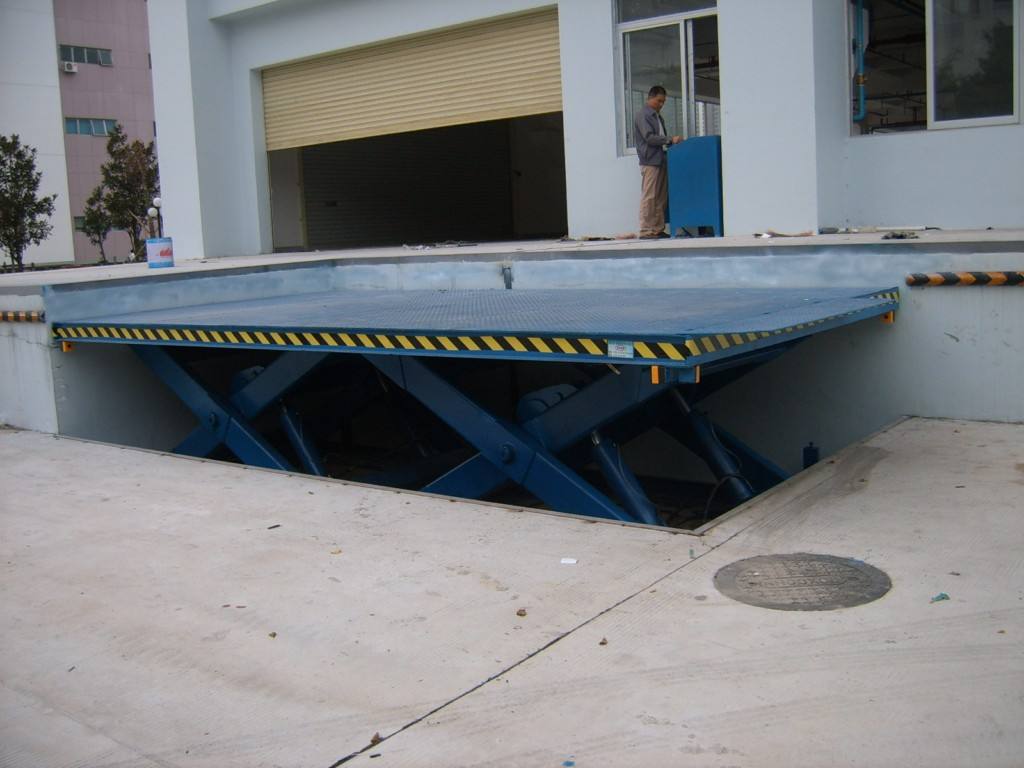

5 ton scissor lift platform is used for stationary hydraulic loading and unloading platform is suitable for the warehouse, workshop and car, container loading and unloading of goods, goods without setting machine, steel, etc., 5 ton scissor lift platform directly from the ground, lifting, loading and unloading, the activities of the professional design strap can smooth lap in automobiles, forklifts, manual hydraulic forklift loading and unloading operation can be conveniently and smoothly, strap torsional spring balance function make the operation easy, homework finished platform and flat on the ground, not occupy space on the ground, does not affect the channel.
Rated Loading Capacity: 5t
Max. Lifting Height: 1500mm
Voltage: DC 12V/24V AC 220V/380V
Usage: Lifting cargo
5 ton scissor lift table specifications
| Model | capacity | Min. height | Lifting range | Platform size | Motor power | Self-weight |
| SJG0.3-3 | 300 | 650 | 3000 | 200*1200 | 1.1 | 780 |
| SJG0.5-5 | 500 | 850 | 5000 | 2000*1000 | 2.2 | 1200 |
| SJG1-3.3 | 1000 | 840 | 3300 | 1900*1500 | 3 | 1300 |
| SJG1-4.3 | 1000 | 860 | 4300 | 2500*2000 | 3 | 2500 |
| SJG1-6 | 1000 | 1230 | 6000 | 2200*1500 | 2.2 | 2500 |
| SJG2-3.5 | 2000 | 1000 | 3500 | 2200*1500 | 3 | 1800 |
| SJG3-4.5 | 3000 | 1060 | 4500 | 2200*1800 | 4 | 2200 |
| SJG1.5-3 | 1500 | 820 | 3000 | 1800*1200 | 2.2 | 1480 |
| SJG2-4.8 | 2000 | 980 | 4800 | 2000*2000 | 4 | 2200 |
| SJG2-6 | 2000 | 1150 | 6000 | 2200*2000 | 5 | 2800 |
| SJG1-8 | 1000 | 1320 | 8000 | 2200*1800 | 4 | 3000 |
| SJG2-9 | 2000 | 1400 | 9000 | 2500*1800 | 7.5 | 3800 |
| SJG2-11 | 2000 | 1900 | 11000 | 2500*1500 | 7.5 | 4100 |
| SJG3-10 | 3000 | 2100 | 10000 | 2500*1500 | 7.5 | 4300 |
Features of 5 ton stationary hydraulic lifting platform
1, compact and stable structure, can adapt to high frequency continuous operation.
2. The lifting height is stable, which can meet the stable lifting of large-tonnage cargo.
3, with anti-attachment, overload safety protection hydraulic system, to ensure safe operation.
4, roller, ball, rotary table and other arbitrary configuration, can meet the requirements of different working conditions.
Promise of DFLIFT 5 ton hydraulic scissor lift table manufacturers
Reply query within 4 hours.
Scissor lift table best price.
Professional pre-sale service technology, provide a comprehensive range of solutions.
We can provide professional training in use, installation and adjustment.
Remote or on-site technical support.
Welcome to our factory and company.
Quote to port of your country.
