Narrow scissor lift: it is mainly used in shopping malls or hotels because of its Narrow size. It can be used through Narrow aisles or doors and the upper handrail is removable, which is very convenient. It is usually used indoors. Turning and walking are driven by hydraulic or electric power. The entire control of Narrow scissor lift is completed by someone standing on the platform to operate the control bar. DFLIFT is a professional manufacturer of scissor lift. We are from China and our products are exported to ports of more than 200 countries in the world. You are welcome to visit us.
Narrow scissor lift manufacturer
Rated Loading Capacity: 300KG
Lift Drive / Actuation: Hydraulic
Battery: 2*12V/80Ah
Certification: CE ISO9001
Control Mode: Self-Propelled
Lifting Height: 3-14m
Indoor Shop Convenient Maintained Narrow Scissor Lift
- OEM & ODM Service -
Tables
| Model Type | Unit | SPS3.0 | SPS3.9 |
| Max. Platform Height | mm | 3000 | 3900 |
| Max. Working Height | mm | 5000 | 5900 |
| Lift Rated Capacity | kg | 300 | 300 |
| Ground Clearance | mm | 60 | |
| Platform Size | mm | 1170*600 | |
| Wheelbase | mm | 990 | |
| Min. turning radius | mm | 1200 | |
| Max. Drive peed(Platform Lifted) | km/h | 4 | |
| Max. Drive e Speed(Platform Lowered) | 0.8 | ||
| Lifting/falling speed | sec | 20/30 | |
| Max. Travel Grade | % | 10月15日 | |
| Drive motors | V/Kw | 2×24/0.3 | |
| Lifting motor | V/Kw | 24/0.8 | |
| Battery | V/Ah | 2×12/ 80 | |
| Charger | V/A | 24/15A | |
| Max allowable working angle | 2° | ||
| Overall Length | mm | 1180 | |
| Overall Width | mm | 760 | |
| Overall Height | mm | 1830 | 1930 |
| Overall Net Weight | kg | 490 | 600 |

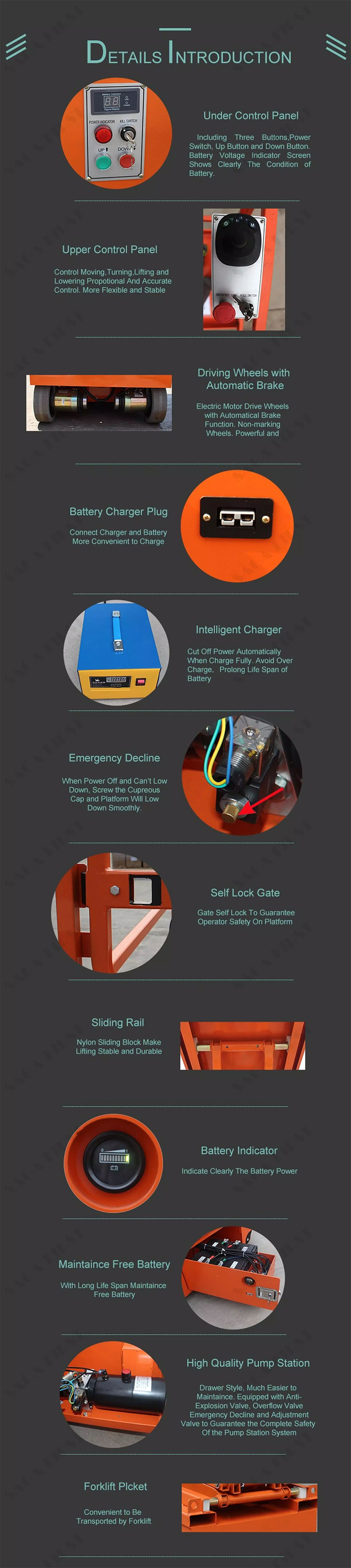

Narrow Scissor Lift design advantages
Advantages of DFLIFT narrow scissor lift:
The narrow width as narrow scissor lift, it can be rotated in the narrow space and walking, especially in the hotel or space where it can be easily through the narrow door or corridor, narrow scissor lift running noise is small, platform lift specially design is very strong and durable, is a modern hotel or the workshop clean glass, wall, replace the lamps and lanterns or overhaul maintenance equipment ideal aerial work platform.
